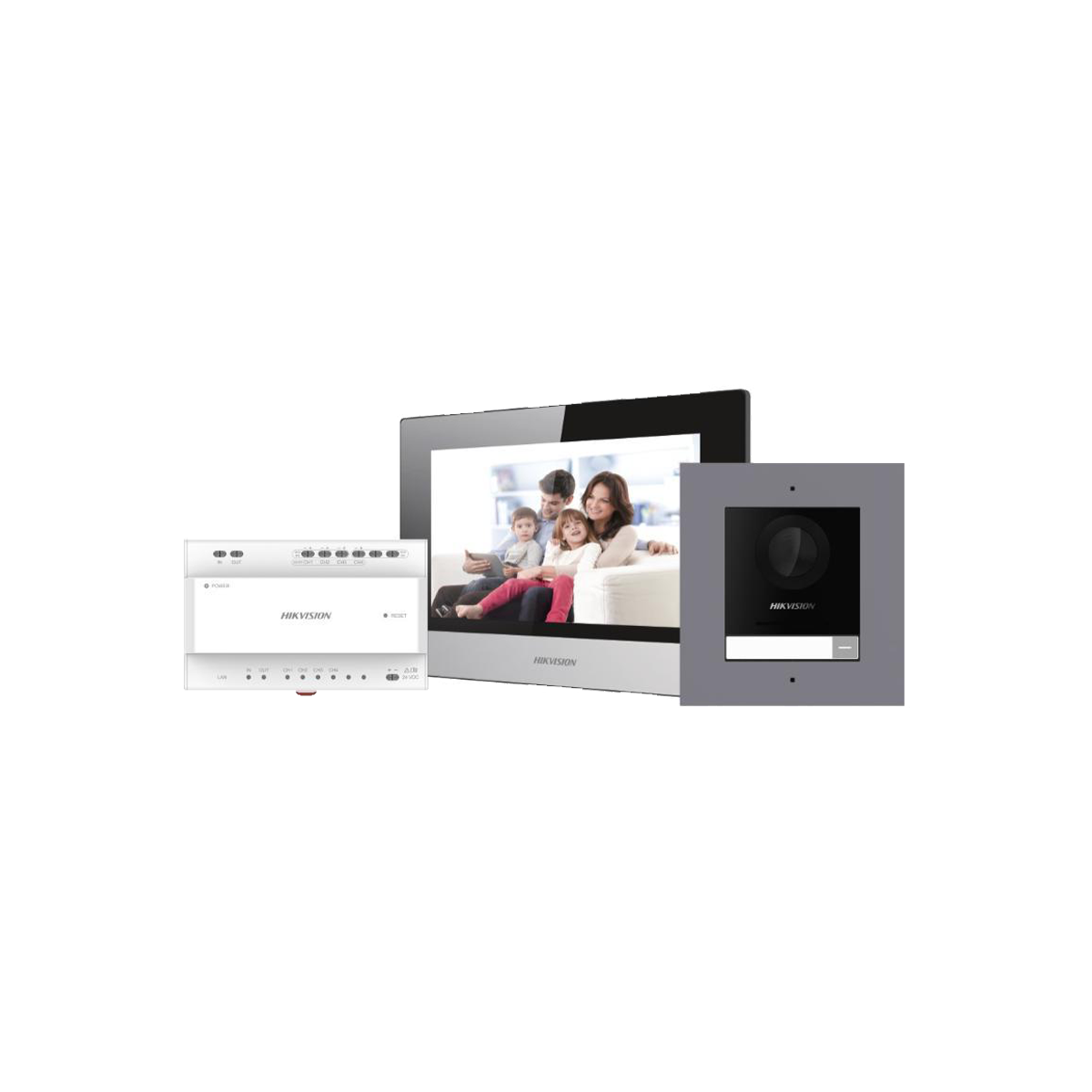

Hikvision Villa Two Wire Kit DS-KIS702EY

Technical Specification

Door Station

System Parameters

• Processor: Embedded microcontroller
• Operating System: Embedded Linux
• Operation Mode: One-Touch Key

Video Parameters

• Camera: 2MP super definition camera
• Resolution:
  • Main Stream: $1920\times 1080$ ($720\text{p}$ configurable)
  • Sub Stream: $720\times 480$
• Night Vision: Supports low light and IR light supplement mode
• Backlight Compensation: Supported
• Digital Noise Reduction: Supported
• WDR (Wide Dynamic Range): True WDR
• Field of View (FOV):
  • Horizontal: 146∘
  • Vertical: 82∘
• Video Compression Standard: H.264
• Stream:
  • Main Stream: $1080\text{p @ 30fps}$, $720\text{p @ 30fps}$ (configurable)
  • Substream: D1
• Motion Detection: Supported
• Flash-avoid Frequency: $50\text{ Hz}$, $60\text{ Hz}$

Audio Parameters

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Loudspeaker (20 cm sound effect > $80\text{ dB}$)
• Audio Quality: Noise suppression and echo cancellation
• Audio Compression Standard: G.711 U
• Audio Compression Rate: $64\text{ Kbps}$
• Audio Intercom: Full-duplex two-way audio intercom

Capacity Parameters

• Sub Door Station Capacity: 16

Device Interfaces

• Debugging Port: 1
• RS-485: 1 (for Hikvision’s sub-module communication)
• Alarm Input: 4 (2 exit buttons and 2 door contacts by default)
• Lock Control: 2 (2 relay, max. $30\text{ VDC}$, $2\text{ A}$)
• TAMPER Switch: 1
• Power Interface: $12\text{ VDC}$ power output ($12\text{ V}$, $500\text{ mA Max.}$)

General

• Working Temperature: $-40°C\text{ to}60°C$ (−40°F to140∘F)
• Working Humidity: $10\%\text{ to}90\%$
• Installation: Surface mounting
• Protection Level: IP65
• Button: 1
• Power Input: Powered by KAD704Y or KAD706Y series distribution

Indoor Station

System Parameters

• Operating System: Embedded Linux
• Memory: 128 MB
• Flash Memory: 32 MB

Display Parameters

• Display Screen: 7-inch TFT LCD
• Display Resolution: $1024\times 600$
• Operation Method: Capacitive touch

Audio Parameters

• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Audio Quality: Noise suppression and echo cancellation
• Volume: Local or software control
• Audio Compression Standard: G.711 U, G.711 A
• Audio Compression Rate: $64\text{ Kbps}$

Network Parameters

• Wired Network: Two-wire network
• Wireless Network: Wi-Fi 802.11b/g/n
• Protocol: TCP/IP, SIP, RTSP

Device Interfaces

• Network Interface: Two-wire interface
• RS-485: 1
• Alarm Input: 8 zones alarm input
• Relay Output: 2
• TF Card: Supported, Max. $128\text{ GB}$

General

• Power Supply: Powered by KAD704Y or KAD706Y series distributor
• Working Temperature: $-10°C\text{ to}50°C$ (14°F to122∘F)
• Working Humidity: $10\%\text{ to}90\%$
• Dimensions (W × H × D): 200 mm × 140 mm × 23.6$\text{ mm}$ (7.87″ × 5.51″ × 0.93$\text{“}$)

Video Audio Distributor

Interfaces

• Network Interface: 1 RJ45
• Two-wire Interface: 6 (2 for cascading and 4 for devices)
• Signal Indicator: 6
• Power Indicator: 1
• Reset: 1

General

• Power Supply: $24\text{ VDC}$
• Power Consumption: CH1 to CH3 < 4$\text{ W}$, CH4 < 8$\text{ W}$
• Working Temperature: −10°C to55∘C (14°F to131∘F)
• Working Humidity: $10\%\text{ to}90\%$
