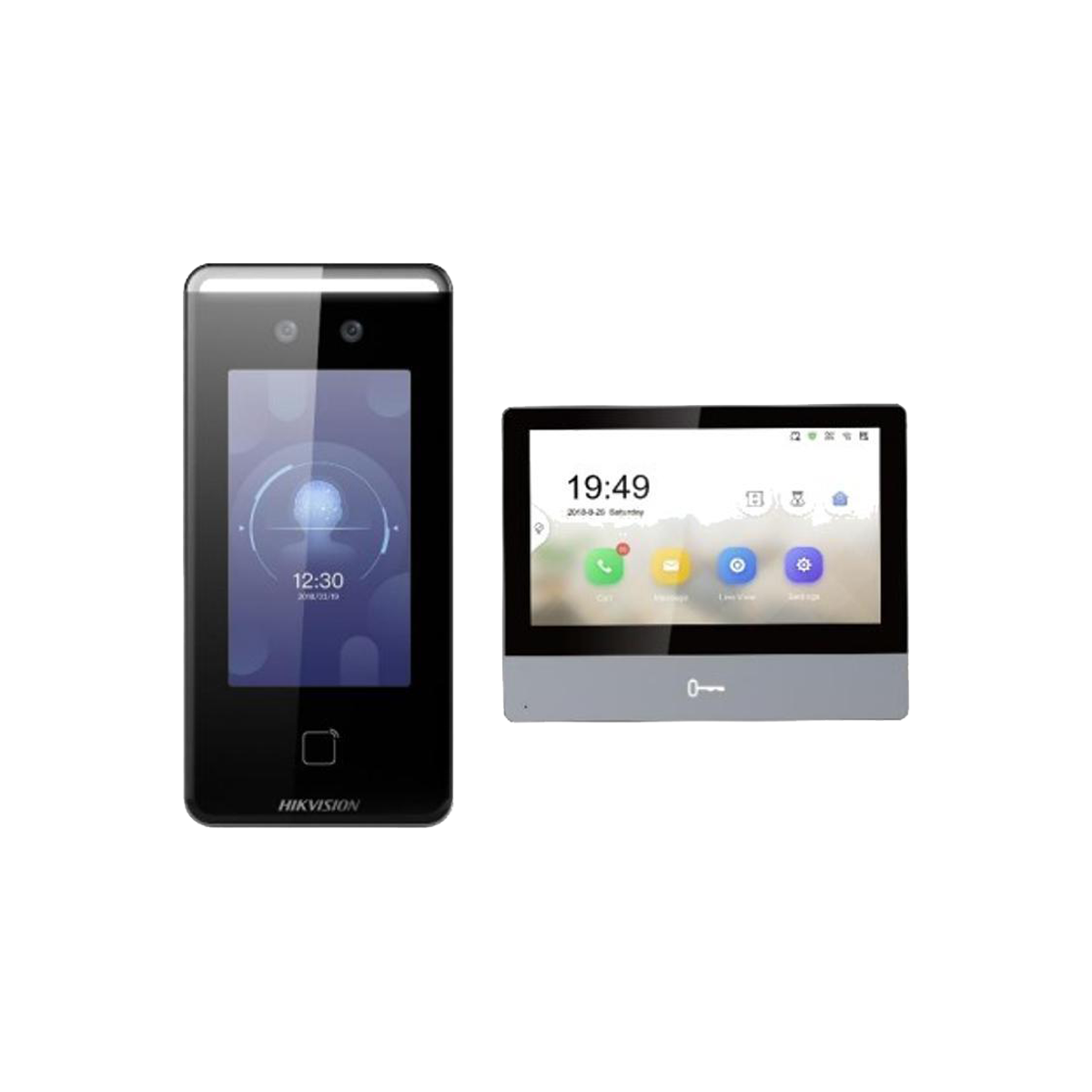

Hikvision Facial IP Intercom Kit DS-KIS901-P
- MinMoe face recognition terminal and indoor station bundle for villa or commercial
- One call button for easier calls
- Supports Wi-Fi and PoE power supply for easy installation
- Including DS-K1T341AM × 1, DS-KH8350-WTE1 × 1, PSU × 2, 16GB TF card × 1
- Power adapter included in the package
Technical Specification
Face Recognition Terminal Specifications
Audio
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Volume Adjustment: Adjustable via device or client
Authentication
- Card Type: M1 card
- Card Reading Distance: 0 to 3 cm
- Card Reading Duration: Less than 1 second
- Face Recognition Duration: Less than 0.2 seconds
- Face Recognition Distance: 0.3 to 1.5 meters
Camera
- Pixel: 2 MP
- WDR (Wide Dynamic Range): Supported
- Lens: 2
- Video Standard: PAL (Default) and NTSC
Capacity
- Card Capacity: 1,500
- Face Capacity: 1,500
- Event Capacity: 150,000
Function
- Face Anti-spoofing: Supported
- Live View: Supports live view on the platform, H.264
- Face Recognition: Supports face recognition in low illumination
- Access Control Management: Supports multiple authentication methods
General
- Protection Level: IP65
- Power Supply: 12 VDC, 2A
- Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working Humidity: 0 to 90% (No condensing)
Interfaces
- Network Interface: 1, RJ45
- RS-485: 1
- Wiegand: Wiegand 26 and Wiegand 34
- Lock Output: 1
- Exit Button: 1
- Door Contact Input: 1
- Power Interface: 1
- TAMPER Switch: 1
- USB: 1, USB 2.0
Network
- Wired Network: 10/100/1000 Mbps self-adaptive
- Communication Protocol: ISUP 5.0
Screen
- Size: 4.3-inch
- Resolution: 800 × 480
- Operation Method: Capacitive touch screen
System Parameters
- Operation System: Embedded Linux operation system
Indoor Station Specifications
System Parameters
- Operation System: Embedded Linux operation system
- Memory: 128 MB
- Flash: 32 MB
Display Parameters
- Display Screen: 7-inch colorful IPS LCD
- Display Resolution: 1024 × 600
- Operation Method: Capacitive touch screen, physical button
Audio Parameters
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Quality: Noise suppression and echo cancellation
- Audio Compression Standard: G.711 U
- Audio Compression Rate: 64 Kbps
Network Parameters
- Wired Network: 10/100 Mbps self-adaptive
- Wireless Network: Wi-Fi 802.11 b/g/n
- Protocol: TCP/IP, SIP, RTSP
- Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
- Alarm Input: 8-channel alarm inputs
- I/O Output: 2
- TF Card: Max 32 GB, SD 2.0 or lower version
General
- Power Supply: IEEE802.3af, standard PoE; 12 VDC/1 A
- Power Consumption: 7 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (L x W x H): 180 mm × 140 mm × 22.4 mm (7.09″ × 5.51″ × 0.88″)
- Power Supply via Detector: 12 V, 200 mA
- Weight: 899 g (with packaging); 355 g (without packaging)
