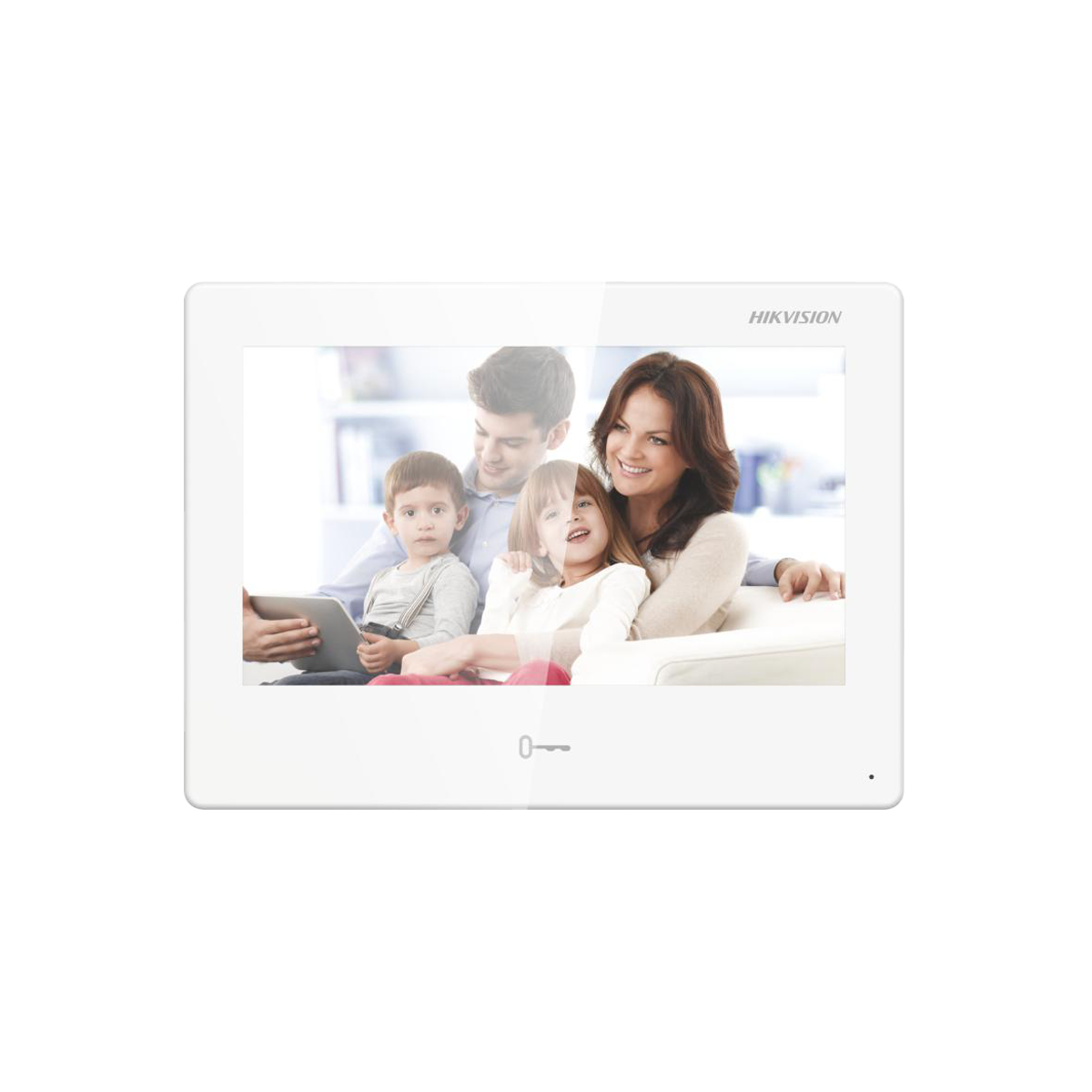

Hikvision All-in-one Indoor Station DS-KH9310-WTE1(B)

  • 7-inch colorful touch screen with 1024 × 600 resolution
  • Built-in Android System
  • Supports Android APP installation
  • Support for three-party software integration
  • Built-in Hik-Connect APP

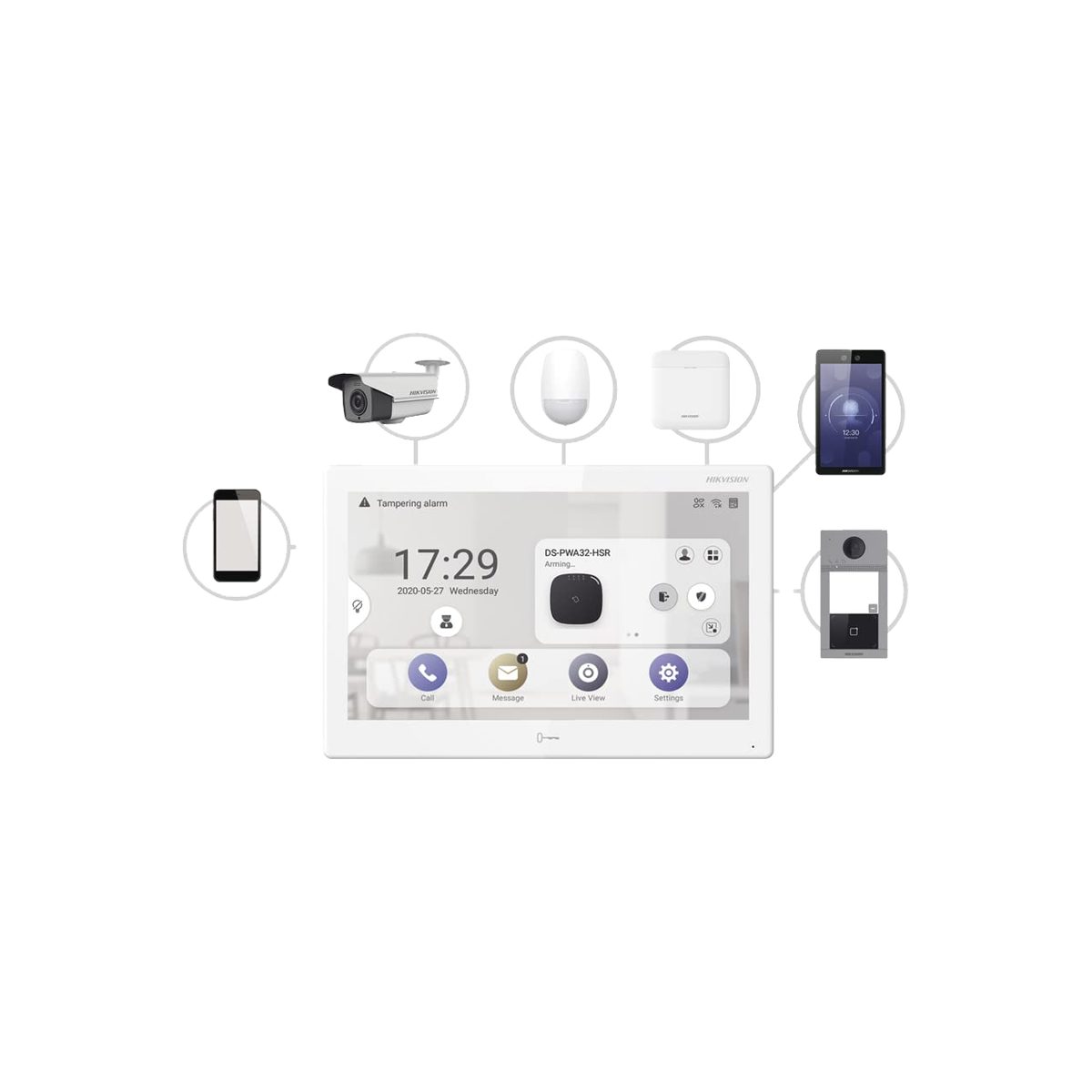

  • For all-in-one management of Hikvision’s devices on tablet
SKU:DS-KH9310-WTE1(B)Categories:IntercomTags:Indoor, Screen Module

Technical Specification

System Parameters
  • Operating System: Android 10.1
  • Processor: Embedded high-performance processor
  • ROM: 8 GB
  • RAM: 2 GB
Display Parameters
  • Screen Size: 7-inch
  • Operation Method: Capacitive touch screen
  • Type: Colorful TFT
  • Resolution: 1024 × 600
Video Parameters
  • Video Compression Standard: H.265, H.264
Audio Parameters
  • Audio Input: 1 built-in omnidirectional microphone
  • Audio Output: 1 built-in loudspeaker
  • Audio Compression Standard: G722.1, OPUS, AAC_LC, AAC_LD, G726, G711.U, G711.A
  • Audio Compression Bitrate: 64 Kbps
  • Audio Quality: Noise suppression and echo cancellation
  • Volume Adjustment: Adjustable
Capacity
  • Message Capacity: 200 captured pictures, 200 alarm records
  • Notice Capacity: 200
  • Linked Indoor Extensions Capacity: 16
  • Linked Network Camera Capacity: 16
  • Linked Doorphone Capacity: 17
Network Parameters
  • Network Protocol: TCP/IP, SIP, RTSP
  • Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Device Interfaces
  • Alarm Input: 8
  • Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
  • RS-485: 1 RS-485 (Half duplex)
  • TF Card: Supports TF card, up to 128 GB
  • Alarm Output: 1
  • Lock Control: 1 relay (Max. 30 VDC 0.3 A) and 1 high/low-level relay (3.3 V/0 V)
General
  • Installation: Surface mounting
  • Weight:
    • Net Weight: 419.3 g
    • Gross Weight: 694 g
  • Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
  • Working Humidity: 10% to 90% (non-condensing)
  • Dimensions (W × H × D): 187 mm × 137 mm × 25.7 mm (7.36″ × 5.39″ × 1.01″)
  • Power Supply: 12 VDC, 1 A, IEEE802.3af, standard PoE
  • Power Consumption: ≤ 12 W
  • Application Environment: Indoor
  • Language: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
