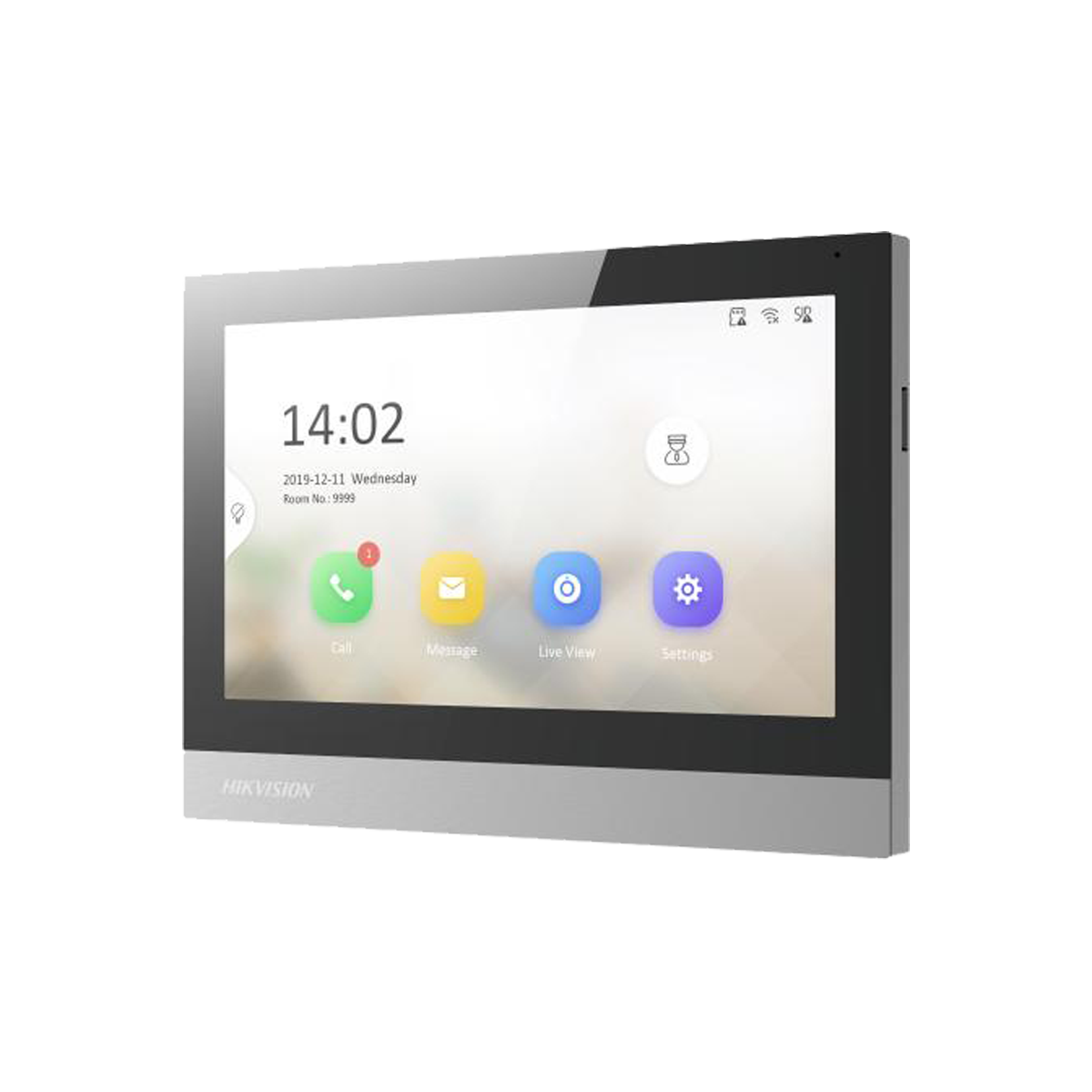

Hikvision 8 Series Indoor Station DS-KH8380-TE1
- 7-inch TFT touch screen with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door, and live view remotely
- Standard IEEE802.3at PoE power supply
- Supports up to 16 indoor extension linkages
- Elevator access control
- Supports surface and flush mounting
Technical Specification
System Parameters
- Operating System: Embedded Linux
- ROM: 32 MB
- RAM: 128 MB
- Processor: Embedded high-performance processor
Display Parameters
- Screen Size: 7-inch
- Operation Method: Capacitive touch screen
- Type: Colorful TFT
- Resolution: 1024 x 600
Video Parameters
- Video Compression Standard: H.265, H.264
Audio Parameters
- Audio Input: 1 built-in omnidirectional microphone
- Audio Output: 1 built-in loudspeaker
- Audio Compression Standard: G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
- Audio Compression Bitrate: 16, 32, 64 kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
Capacity
- Message Capacity:
- With TF card: 200 captured pictures, 200 alarm records
- Without TF card: 2 MB RAM for picture storage (number depends on picture size), 200 alarm records
- Notice Capacity: 200
- Linked Network Camera Capacity: 16
- Linked Indoor Extensions Capacity: 16
Network Parameters
- Network Protocol: TCP/IP, SIP, RTSP
- Wired Network: 1 RJ-45 10/100 Mbps self-adaptive
Device Interfaces
- Alarm Input: 8
- Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
- TF Card Slot: Supports TF card, up to 128 GB
- Debugging Port: 1
General
- Installation: Flush mounting, surface mounting, table mounting
- Weight (Without Package): 366.7 g (0.808 lb)
- Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity: 10% to 90% (non-condensing)
- Dimensions (W × H × D): 178.4 mm × 126.4 mm × 21.8 mm (7.02″ × 4.98″ × 0.86″)
- Power Supply: IEEE802.3at Standard PoE, 12 VDC, 1.5 A
- Application Environment: Indoor
- Power Consumption: 12 W
- Language Support: English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
- Material: Plastic casing
