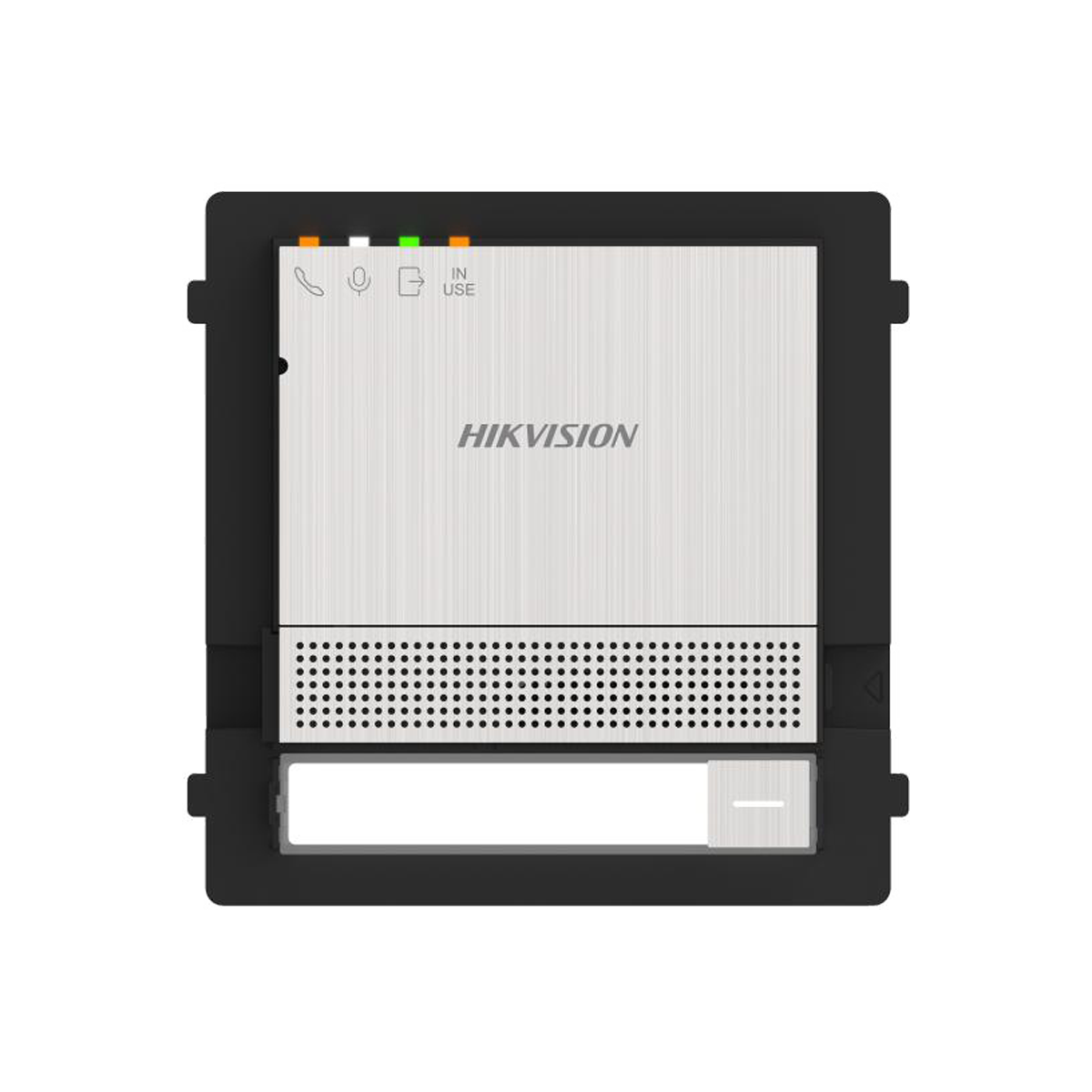

Hikvision 2-wire HD audio door station DS-KD7000EY-ME2

Technical Specification

System Parameters

• Operating System: Embedded Linux
• ROM: 4 GB
• RAM: 256 MB
• CPU: Embedded Processor

Audio Parameters

• Audio Compression Standard: G.711 U, G.711 A
• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• User Capacity: 2000
• Linked Indoor Station Capacity: Max. 99
• Sub Door Station Capacity: 16

Network Parameters

• Wired Network: 10/100 Mbps self-adaptive through 2-wire interface
• Wi-Fi: AP mode for configuration only

Device Interfaces

• Alarm Input: 2 (supports Exit button or Door contact input)
• TAMPER: 1
• Exit Button: 1
• Door Contact Input: 1
• RS-485: 2 (RS485 out for Hikvision’s sub-module communication, RS485 for reservation)
• DIP Switch: 6-decimal DIP switch
• Lock Control:
  • 1 relay, max. 30 VDC, 2 A
  • 1 DC pulse, 20V 4A impulsive, 300 mA holding current, 30 ohm max
• Power Interface: 48V, powered by distributor DS-KAD7060EY or 12VDC
• Two-wire IP Interface: 1

General

• Button: 0-2 (Flexible adjustment)
• Installation: Surface mounting & flush mounting
• Indicator: 4 LED lights (Opening door, Calling, Intercom, In use)
• Weight:
  • With Package: 426g (0.94lb)
  • Without Package: 290g (0.64lb)
• Protective Level: IP65 IK08
• Working Temperature: -40°C to 60°C (-22°F to 140°F)
• Working Humidity: 10% to 90%
• Dimensions: 99.5 mm × 98.5 mm × 35 mm (3.92″ × 3.88″ × 1.37″)
• Power Supply: 48V, powered by distributor DS-KAD7060EY or 12VDC
• Application Environment: Outdoor
• Power Consumption: $\le$ 6 W
• Language Support: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
