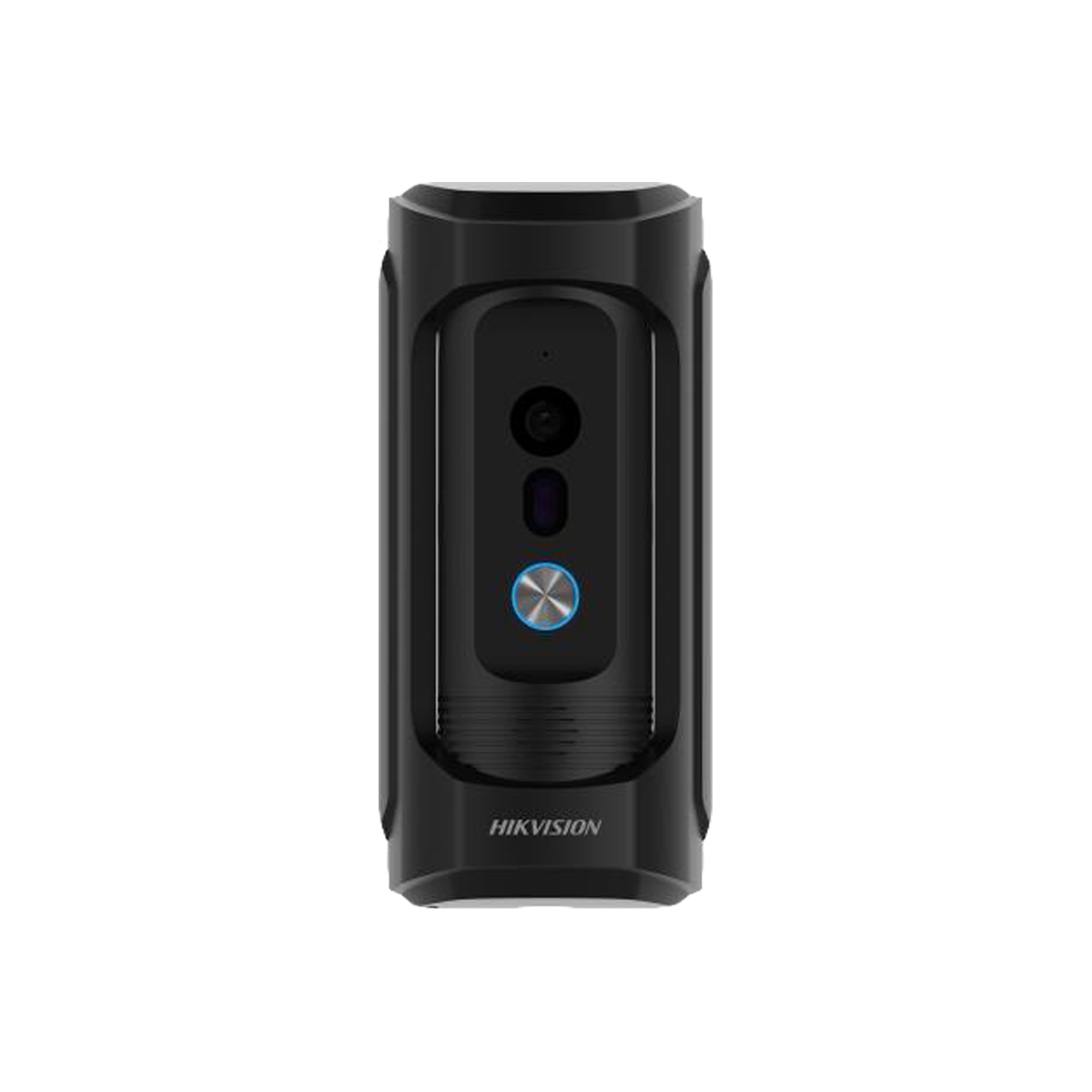

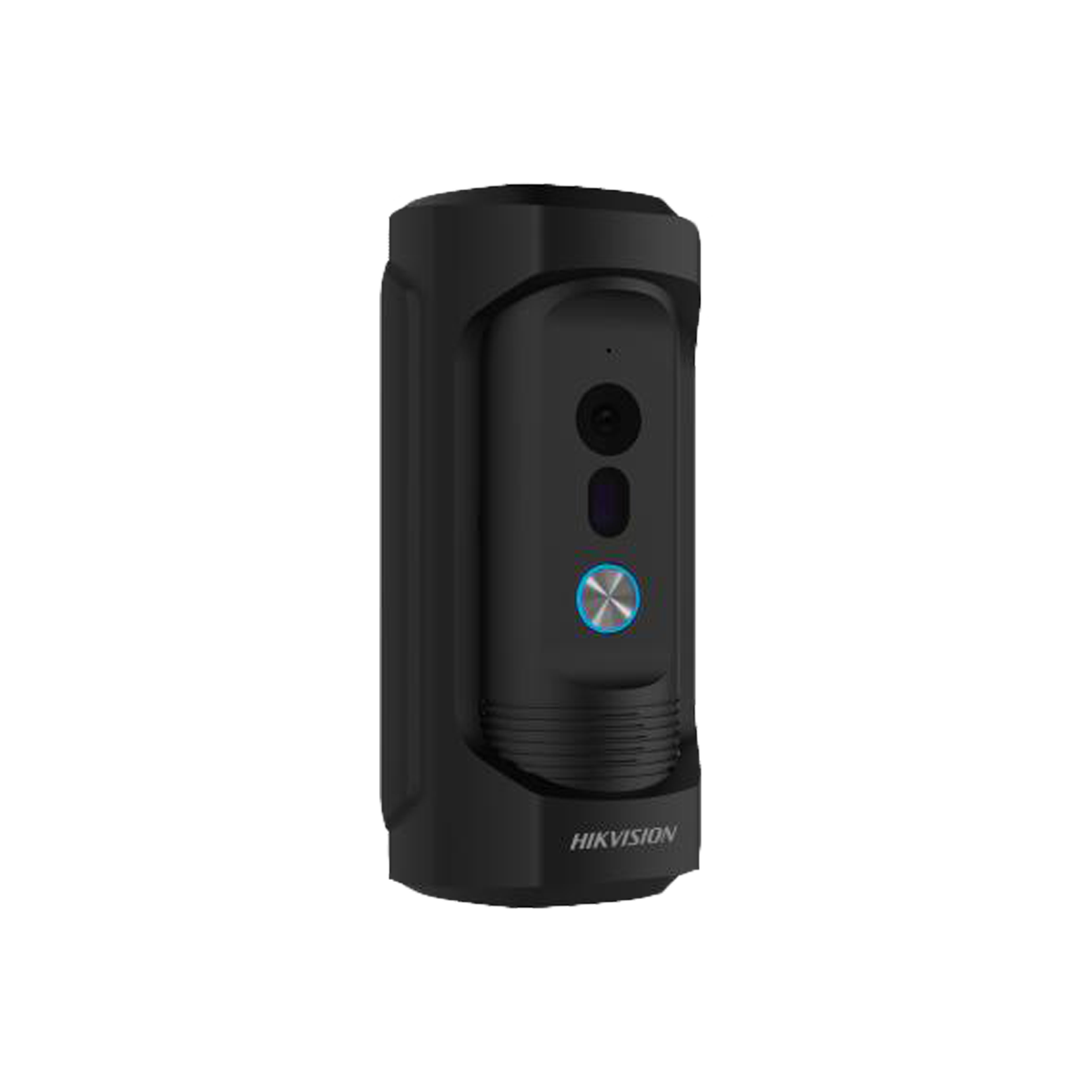

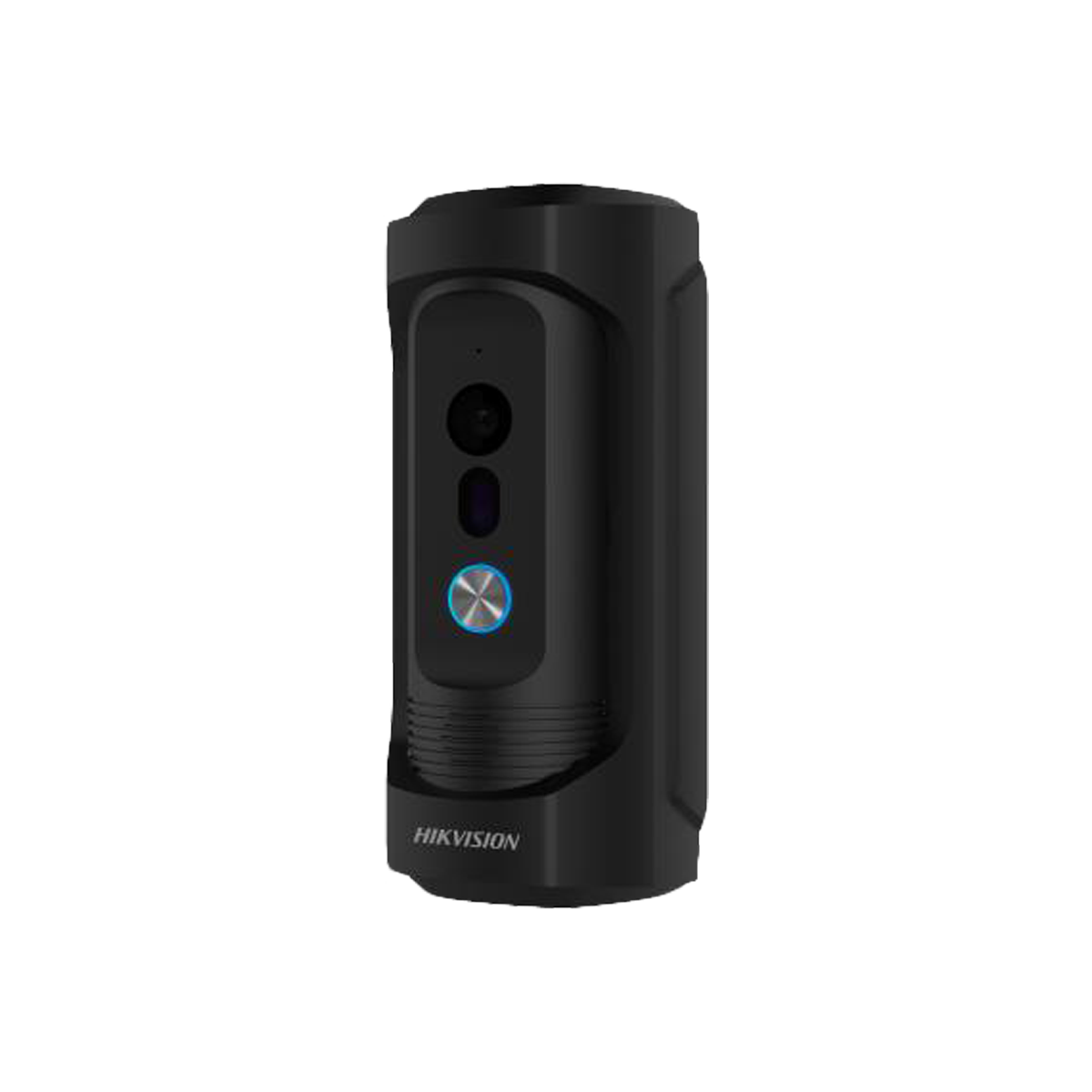

Hikvision Vandal-Resistant Doorbell DS-KB8113-IME1(B)

المواصفات الفنية

System Parameters

• Operating System: Embedded Linux operating system
• ROM: 32 MB
• RAM: 256 MB
• CPU: Embedded MCU Processor

Display Parameters

• Screen Size: Not specified
• Operation Method: Not specified
• Type: Not specified
• Resolution: Not specified

Video Parameters

• Lens: 1
• Resolution:
  • Mainstream: 1920 × 1080
  • Sub Stream: 640 × 480
• FOV (Field of View):
  • Horizontal: 95°
  • Vertical: 54°
• WDR (Wide Dynamic Range): Supported
• Supplement Light: IR supplement
• Video Compression Standard: H.264

Audio Parameters

• Audio Compression Standard: G.711 U, G.711 A
• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker (more than 80 dB within 30 cm)
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• Face Capacity: Not specified
• Card Capacity: Not specified
• Linked Indoor Station Capacity: 1
• Sub Door Station Capacity: 16

Network Parameters

• Network Protocol: TCP/IP, RSTP, SIP
• Wired Network: 10/100 Mbps self-adaptive Ethernet
• Wi-Fi Standard: Not specified
• Bluetooth Version: Not specified
• 3G/4G Standard: Not specified

Device Interfaces

• Alarm Input: 1
• Debugging Port: 1
• Network Interface: 1
• Lock Control: 1 (1 relay, max to 30 VDC, 2 A)
• Power Interface: 1

General

• Button: 1
• Power Supply: IEEE802.3af, standard PoE, or 12 VDC
• Installation: Surface mounting
• Power Consumption: ＜ 10 W
• Working Temperature: -30°C to +50°C (-22°F to 122°F)
• Weight:
  • Gross Weight: 0.992 kg
  • Net Weight: 0.795 kg
• Working Humidity: 10% to 90%
• Protective Level: IP65, IK09
• Dimensions (L x W x H): 161.85 mm × 74.13 mm × 53.2 mm (6.37″ × 2.92″ × 2.09″)
• Battery: Not specified
• Language Support: English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak, Brazilian Portuguese
• Application Environment: Outdoor and Indoor
