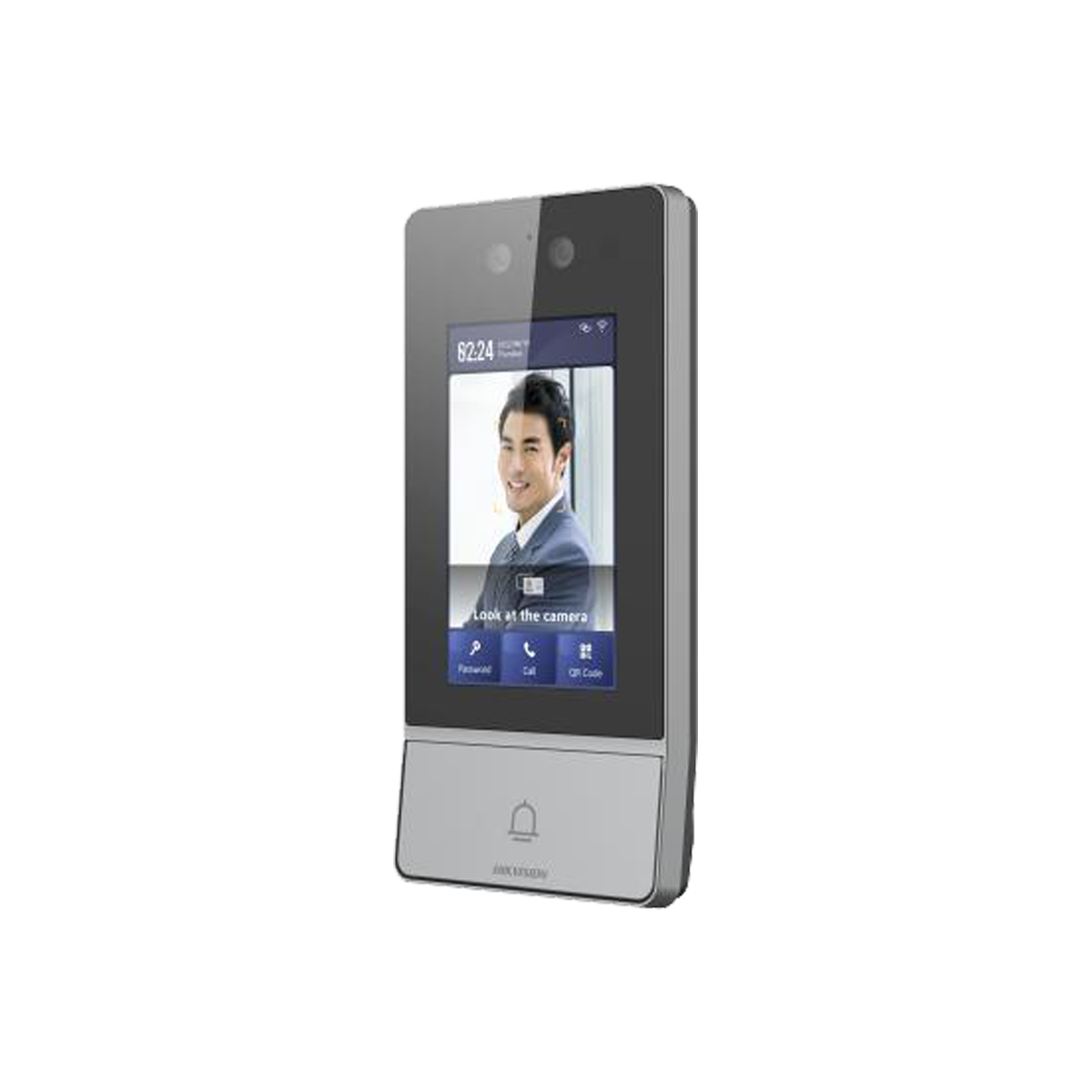

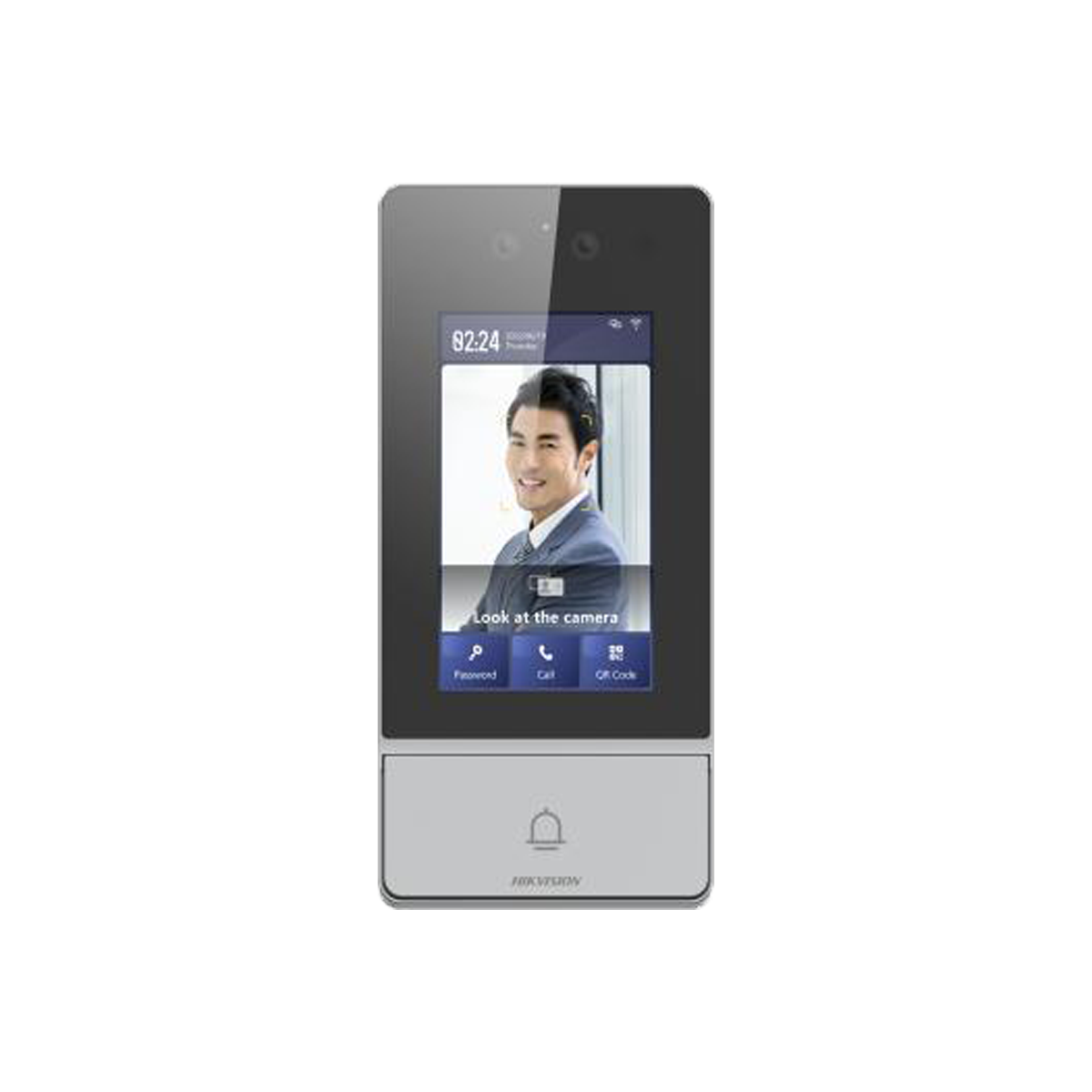

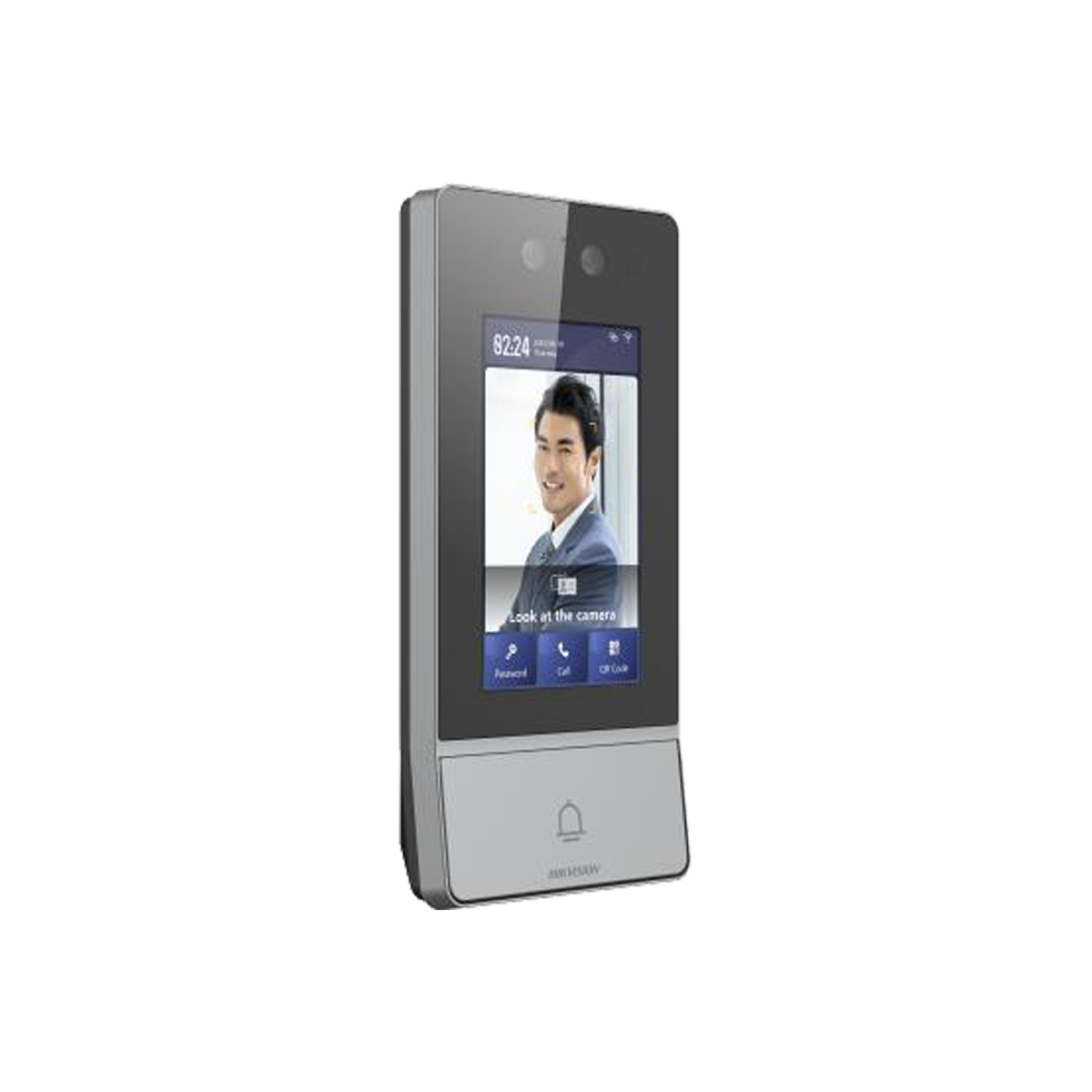

Hikvision Metal Vandal-resistant Facial Recognition IP Villa Door Station DS-KV9503-WBE1

المواصفات الفنية

System Parameters

• Operating System: Linux
• ROM: 4 GB
• RAM: 1 GB
• Processor: Embedded high-performance processor
• Display parameters
• Screen size: 4.3-inch
• Operation method: Capacitive touch screen
• Type: IPS
• Resolution: 800 × 480
• Luminance: 425 cd/m²

Video Parameters

• Lens: 2
• Resolution: 2 × 2 MP
• FOV: Horizontal: 88°, Vertical: 44°
• Wide dynamic range (WDR): Supports 120 dB
• Supplement light: IR light, up to 3 m
• Video compression standard
• Main and sub stream: H.264
• Third stream: H.265

Audio Parameters

• Audio input: 1 built-in omnidirectional microphone
• Audio output: 1 built-in loudspeaker
• Audio quality: Noise suppression and echo cancellation
• Volume adjustment: Adjustable
• Audio compression standard:G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1

Capacity

• User capacity: 20,000
• Face capacity: 10,000
• Fingerprint capacity: N/A
• Card capacity: 100,000
• Message capacity: N/A
• Linked indoor station capacity: 500
• Sub-door station capacity: 16
• Network protocol: TCP/IP, RTSP
• Wi-Fi: IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth: Support: 2.0
• 3G/4G: N/A

Authentication

• Card reading frequency: 13.56 MHz
• Face recognition distance: 0.3 to 2 m
• Face recognition accuracy rate: ≥ 99%
• Face recognition duration: < 0.2 s per person

Device interfaces

• Alarm input: 4 (2 exit buttons and 2 door contacts by default)
• Network interface: 1 RJ-45, 10/100 Mbps self-adaptive
• TAMPER: 1
• Exit button: 2
• RS-485: 1
• USB: N/A
• Wiegand: N/A
• TF card: Reserve
• Lock control
• Relays: 2 (Max. 30 VDC 2 A, lock 2 needs secure module)
• Door contact input: 2

General

• Button: 1 physical button
• Installation: Surface mounting
• Indicator: N/A
• Weight: Net weight: 0.405 kg, Gross weight: 0.752 kg
• Protective level: IP65, IK08
• Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Working humidity: 10% to 90% (non-condensing)
• Dimension (W × H × D): 182 mm × 85 mm × 26 mm (7.16″ × 3.34″ × 1.01″)
• Battery: N/A
• Power supply: 12 VDC, 1.5 A, IEEE802.3af, Standard PoE
• Application environment: Outdoor
• Power consumption: ≤ 6 W
• Language:English, French, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek
