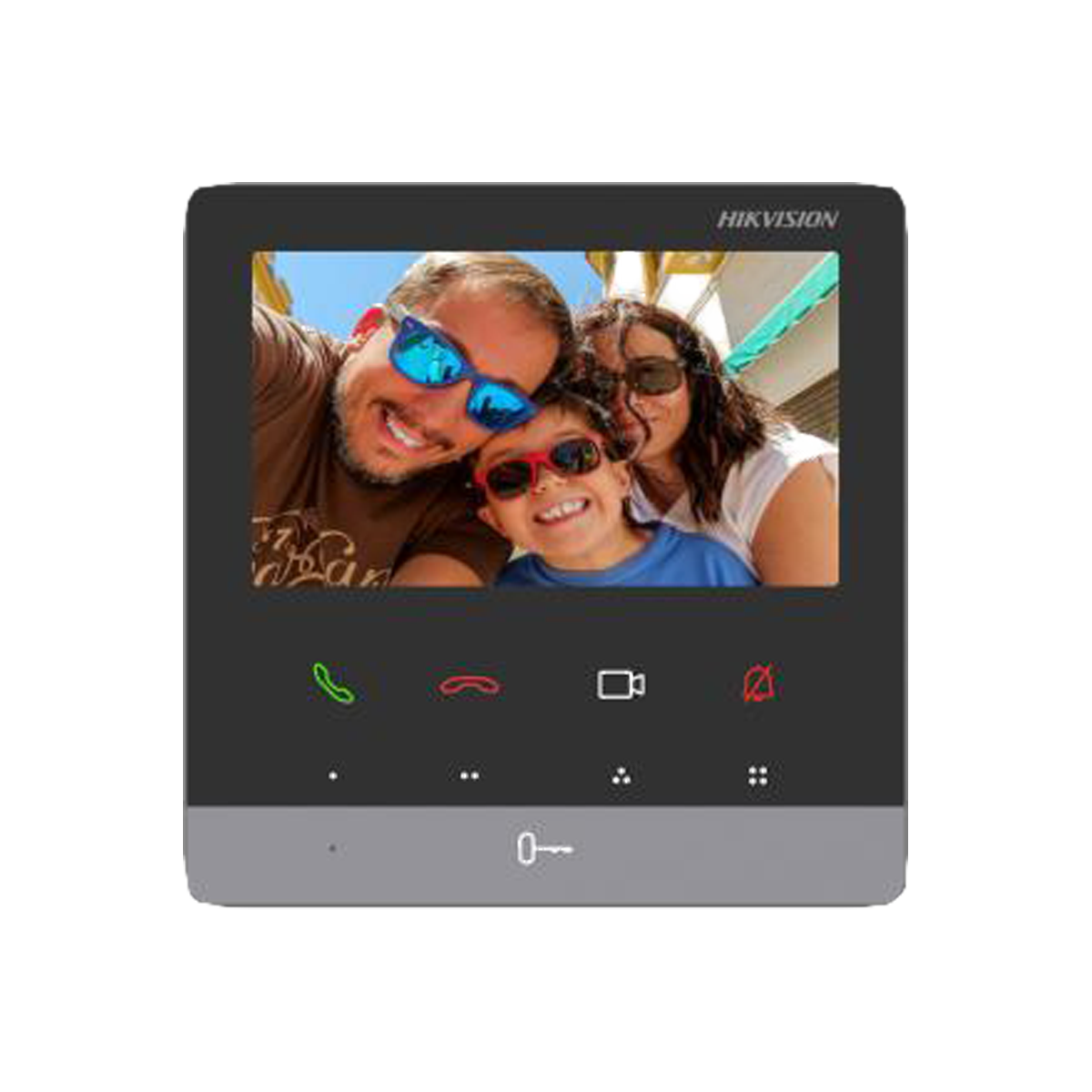

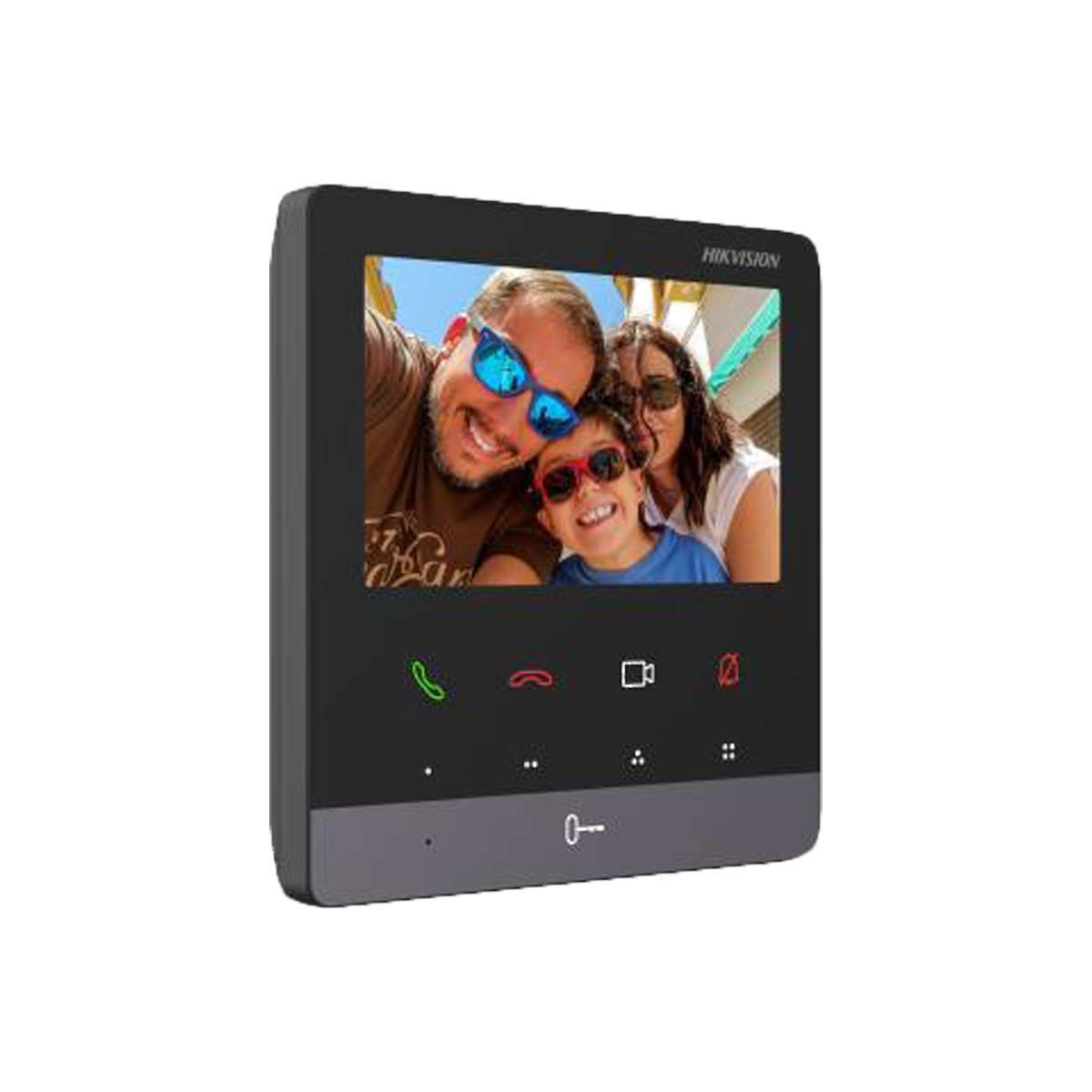

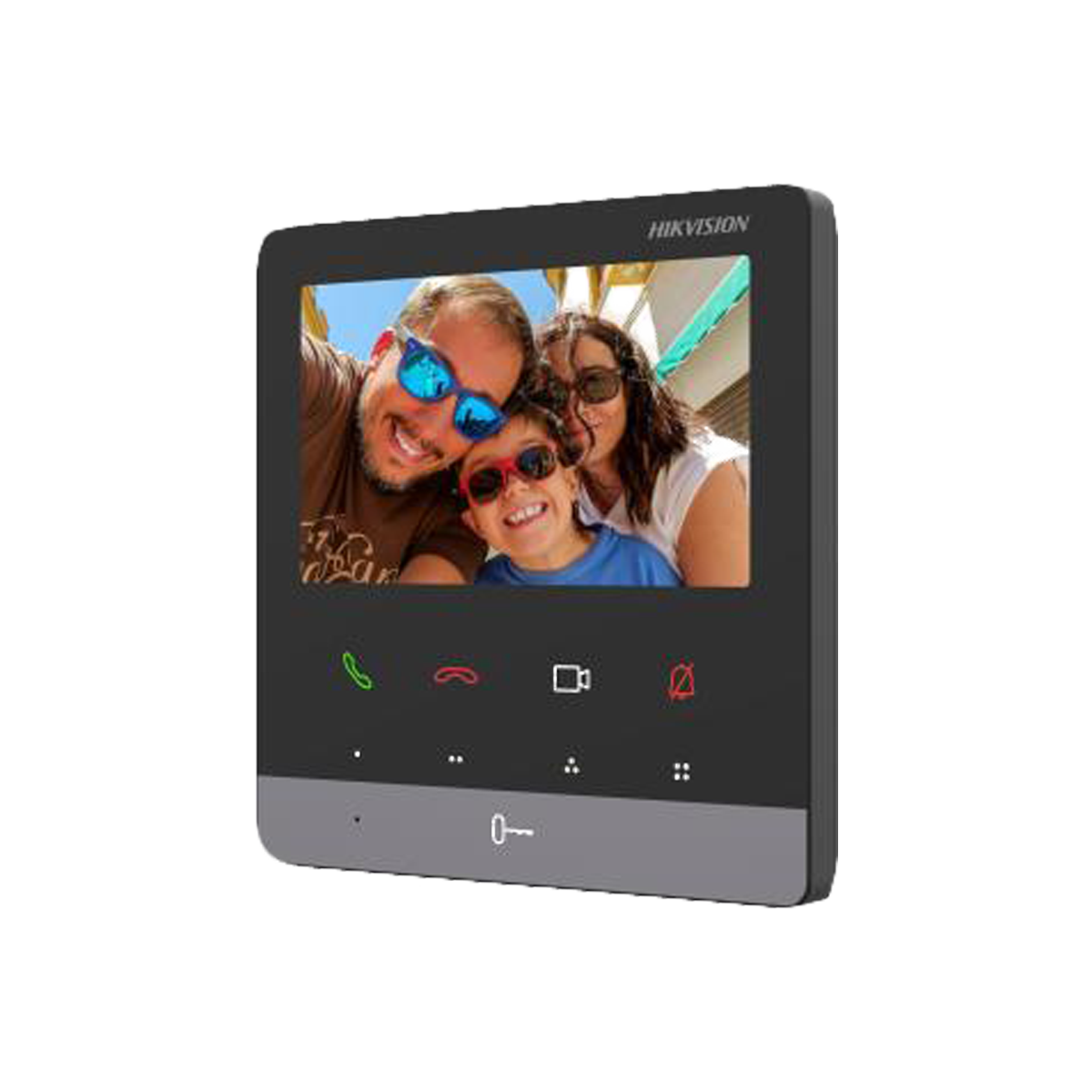

Hikvision KH6 Series IP-Based Indoor Station DS-KH6100-E1

المواصفات الفنية

System Parameters

• Operating System: Linux
• ROM: 8 MB
• RAM: 64 MB
• CPU: Embedded processor

Display Parameters

• Screen Size: 4.3-inch
• Operation Method: 9 touch buttons
• Type: Colorful TFT
• Resolution: 480 × 272

Video Parameters

• Lens: Not specified
• Resolution: Not specified
• FOV (Field of View): Not specified
• WDR (Wide Dynamic Range): Not specified
• Video Compression Standard: Not specified
• Focal Length: Not specified

Audio Parameters

• Audio Compression Standard: G.711 U, G.711 A
• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• Event Capacity: 200
• Notice Capacity: 200
• Linked Indoor Extensions Capacity: 16

Network Parameters

• Communication Protocol: TCP/IP, SIP, RTSP
• Wi-Fi Standard: Not specified
• Bluetooth Version: Not specified
• 3G/4G Standard: Not specified
• Zigbee: Not specified

Device Interfaces

• Alarm Input: Not specified
• Network Interface: 1 RJ-45 100 Mbps
• TAMPER: Not specified
• RS-485: Not specified
• USB: Not specified
• TF Card: Not specified
• Alarm Output: Not specified

General

• Buttons: 9 touch buttons
• Installation: Wall mounting, table mounting
• Indicator: 0
• Weight:
  • With package: 330.6 g (0.7 lbs)
  • Without package: 191.8 g (0.4 lbs)
• Protective Level: Not specified
• Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity: 10% to 90%
• Dimensions: 120 mm × 120 mm × 21 mm (4.7″ × 4.7″ × 0.83″)
• Application Environment: Indoor
• Power Consumption: $\le 4$ W
• Language Support: English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Swedish, Finnish, Mongolian, Hebrew, Kazakh, Uzbek
• Power Supply: IEEE802.3af, Standard PoE, 12 VDC
