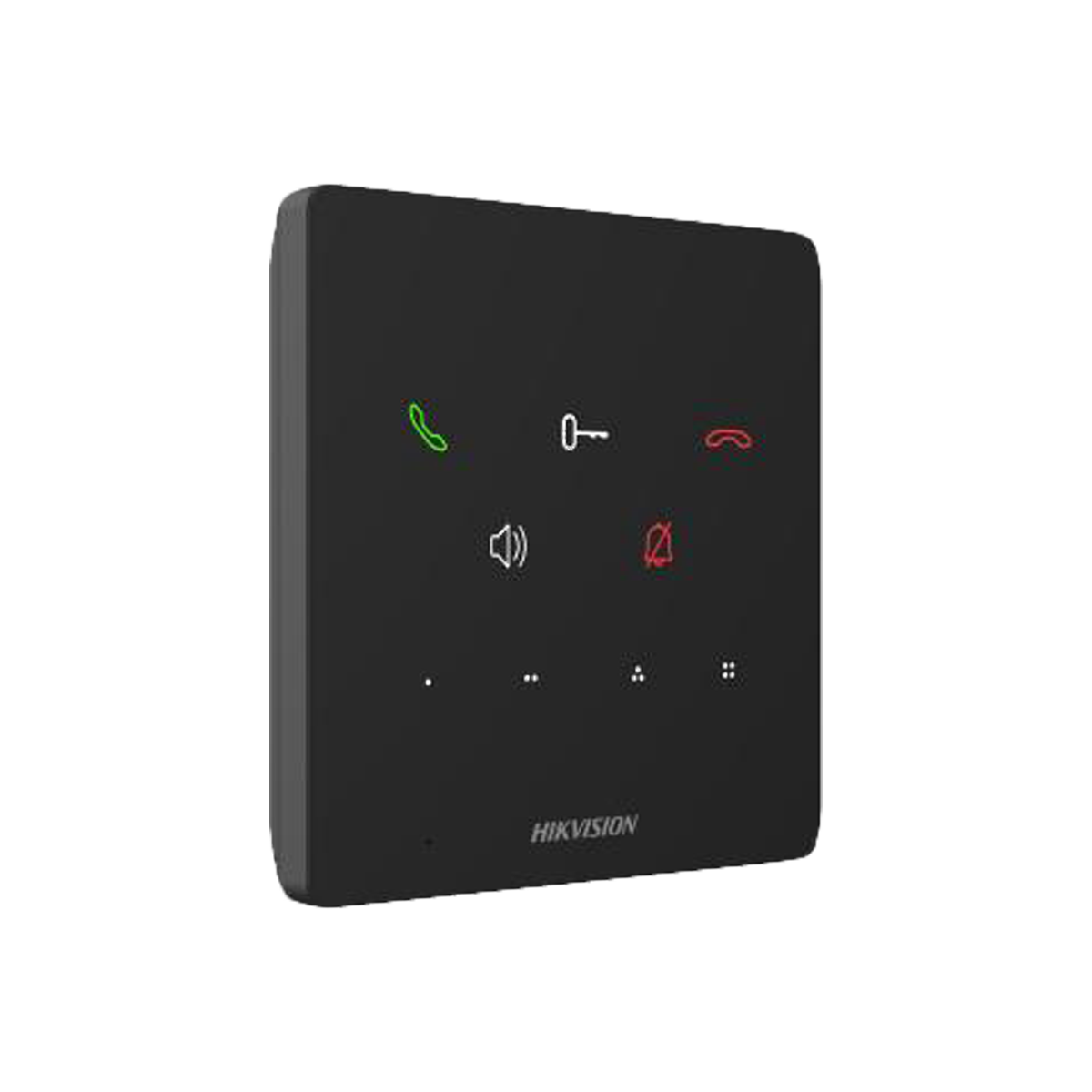

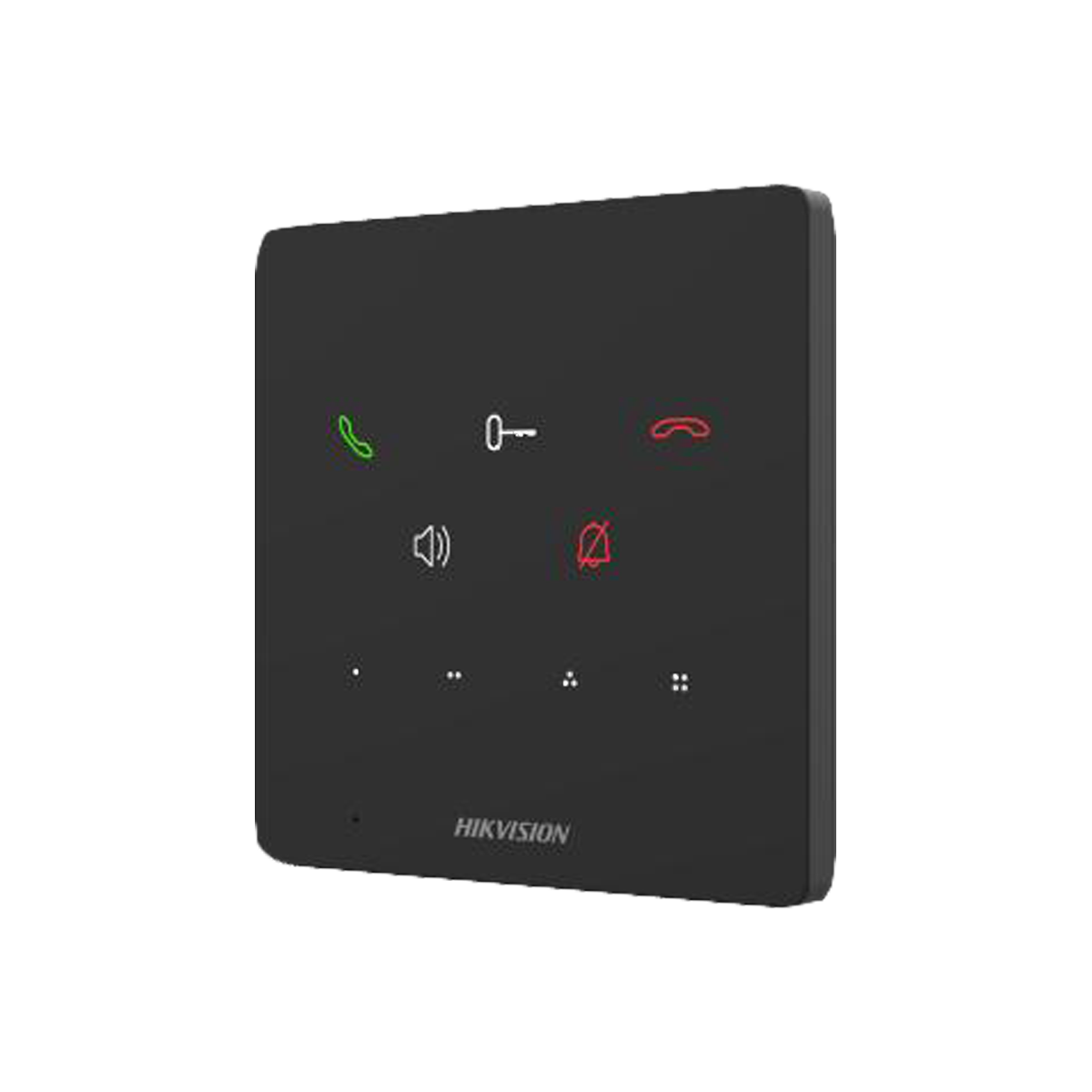

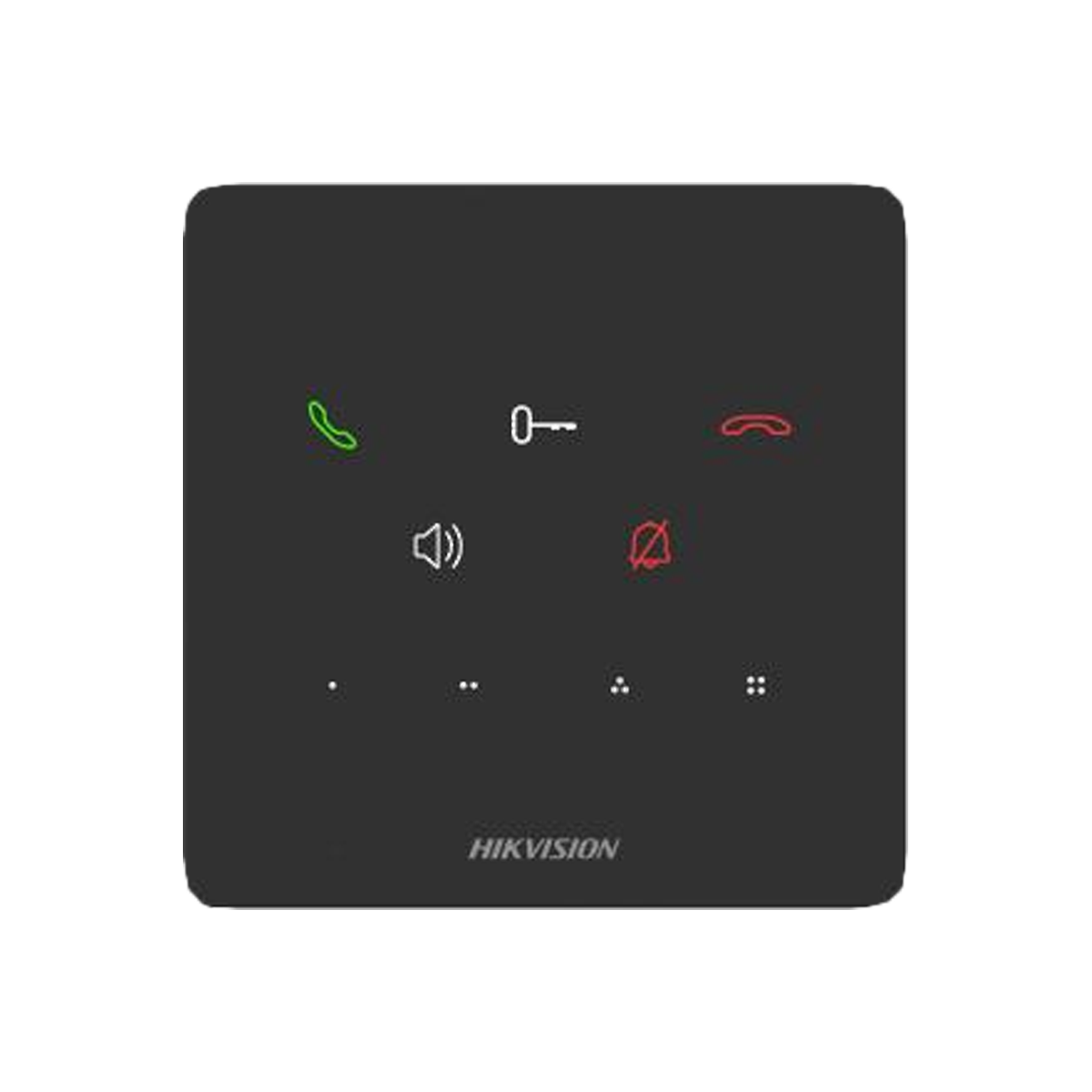

Hikvision KH6 Series IP-Based Indoor Station DS-KH6000-E1

المواصفات الفنية

System Parameters

• Operating System: Linux
• ROM: 8 MB
• RAM: 64 MB
• CPU: Embedded processor

Display Parameters

• Operation Method: 9 touch buttons
• Screen Size: Not specified
• Type: Not specified
• Resolution: Not specified

Video Parameters

• Lens: Not specified
• Resolution: Not specified
• FOV (Field of View): Not specified
• WDR (Wide Dynamic Range): Not specified
• Video Compression Standard: Not specified
• Focal Length: Not specified

Audio Parameters

• Audio Compression Standard: G.711 U, G.711 A
• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• Event Capacity: Not specified
• Notice Capacity: Not specified
• Linked Indoor Extensions Capacity: 16

Network Parameters

• Communication Protocol: TCP/IP, SIP, RTSP
• Wi-Fi Standard: Not specified
• Bluetooth Version: Not specified
• 3G/4G Standard: Not specified
• Zigbee: Not specified

Device Interfaces

• Alarm Input: 4
• Network Interface: 1 RJ-45 100 Mbps
• TAMPER: Not specified
• RS-485: Not specified
• USB: Not specified
• TF Card: Not specified
• Alarm Output: Not specified

General

• Buttons: 9 touch buttons
• Installation: Wall mounting, table mounting
• Indicator: 0
• Weight:
  • With package: 305.4 g (0.7 lbs)
  • Without package: 166.6 g (0.4 lbs)
• Protective Level: Not specified
• Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity: 10% to 90%
• Dimensions: 120 mm × 120 mm × 21 mm (4.7″ × 4.7″ × 0.83″)
• Application Environment: Indoor
• Power Consumption: $\le 4$ W
• Language: English
• Power Supply: IEEE802.3af, Standard PoE, 12 VDC
