Hikvision 4-Wire HD Video Intercom Kit DS-KIS213(B)

Technical Specification

Door Station Specifications

Video Parameters

• Supplement Light: IR light, up to 3 m
• Resolution: Stream resolution: 1280 x 720 @ 60 fps
• Field of View (FOV): Horizontal: 117°, Vertical: 70°, Diagonal: 141°

Audio Parameters

• Audio Input: Built-in omnidirectional microphone ($\le$50 cm)
• Audio Output: Built-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)

Device Interfaces

• Lock Control: 1 relay, max 30 V 1 A
• Debugging Port: 1
• Four-wire Interface: 1

General

• Button: 1 physical button
• Power Supply: 12 VDC
• Power Consumption: Max. 4 W
• Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Working Humidity: 10% to 90%
• Dimensions: 145 mm × 55 mm × 24 mm (5.71″ × 2.17″ × 0.94″)
• Application Environment: Outdoor
• Installation: Surface mounting
• Protective Level: IP65, IK08
• Material: Metal

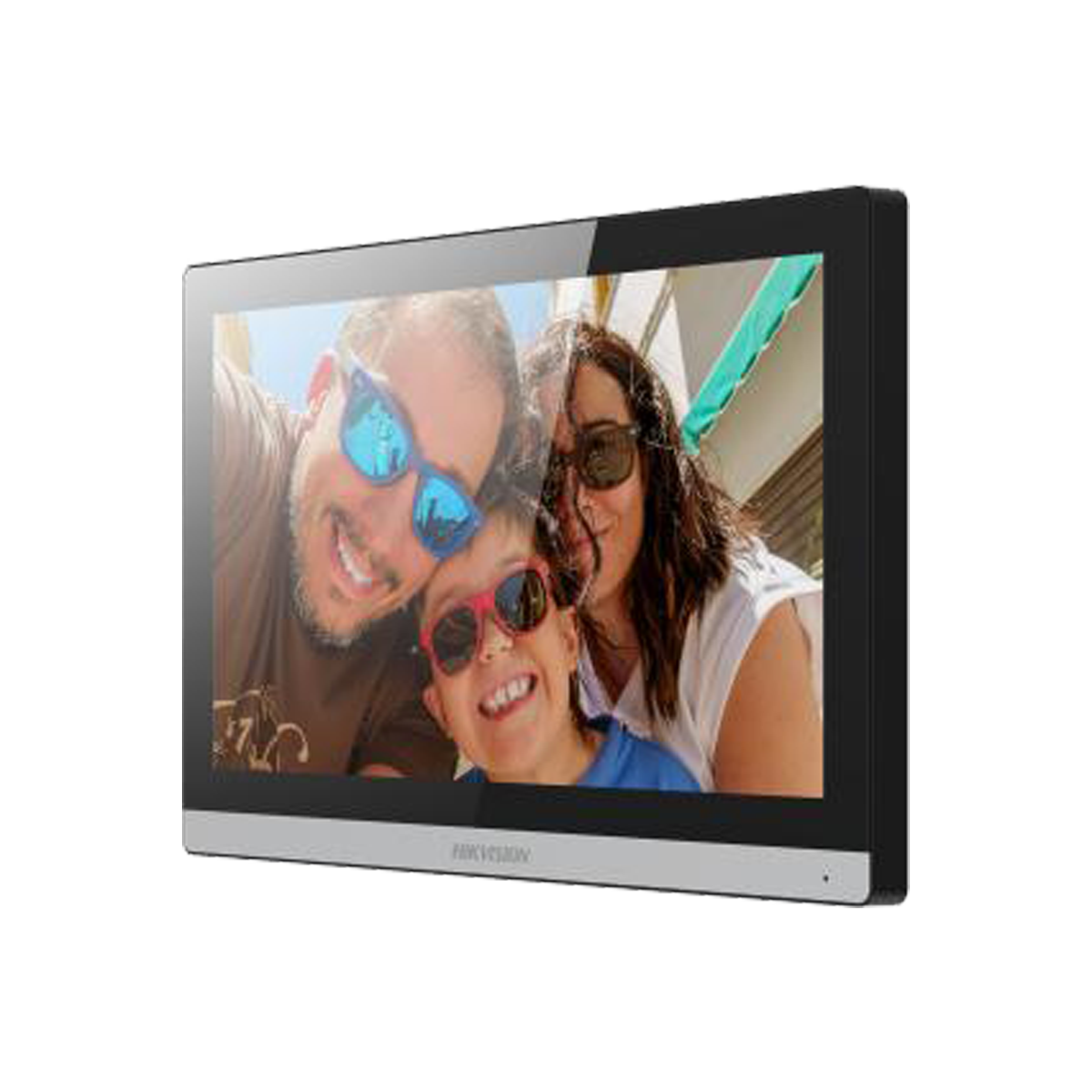

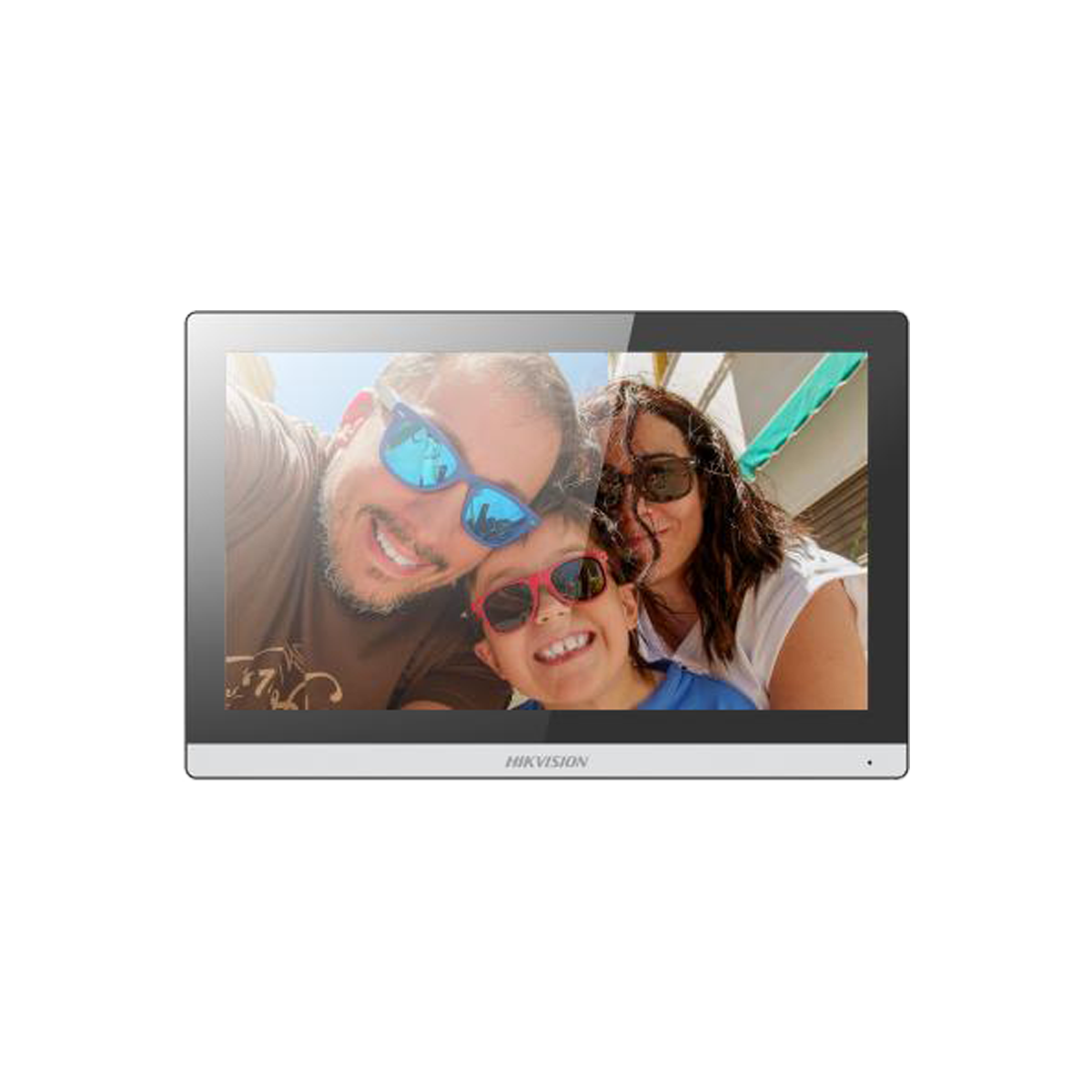

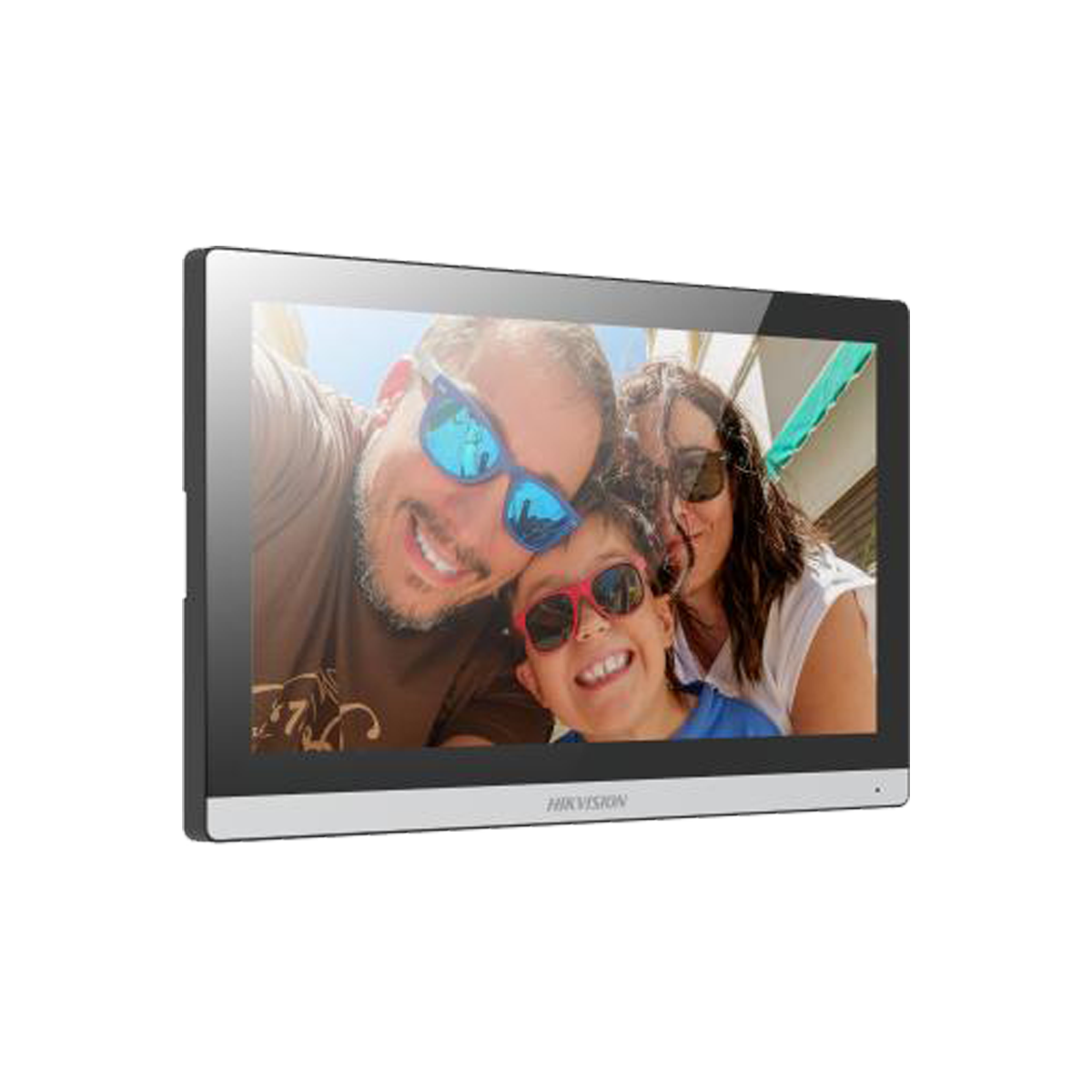

Indoor Station Specifications

Display Parameters

• Operation Method: Physical button
• Type: 7-inch colorful TFT
• Resolution: 1024 x 600

Audio Parameters

• Audio Input: Built-in omnidirectional microphone ($\le$50 cm)
• Audio Output: Built-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)

Capacity Parameters

• Linked Indoor Extensions Capacity: 2
• Linked Doorphone Capacity: 2
• Linked Analog Camera: 1

Device Interfaces

• Power Supply Input: 12V DC
• Debugging Port: 1
• Four-wire Interface: 4 (2 for indoor extensions, 2 for doorphones)
• DIP Switch: 1 Bit
• BNC: 1

General

• Button: 4 physical buttons
• Power Supply: 12 VDC
• Power Consumption: $\le$4 W
• Working Temperature: -10° C to + 55° C (14° F to 131° F)
• Working Humidity: 10% to 90%
• Dimensions (W × H × D): 178 mm x 132 mm x 19 mm (7.01″ × 5.20″ × 0.75″)
• Installation: Surface mounting
• Application Environment: Indoor
