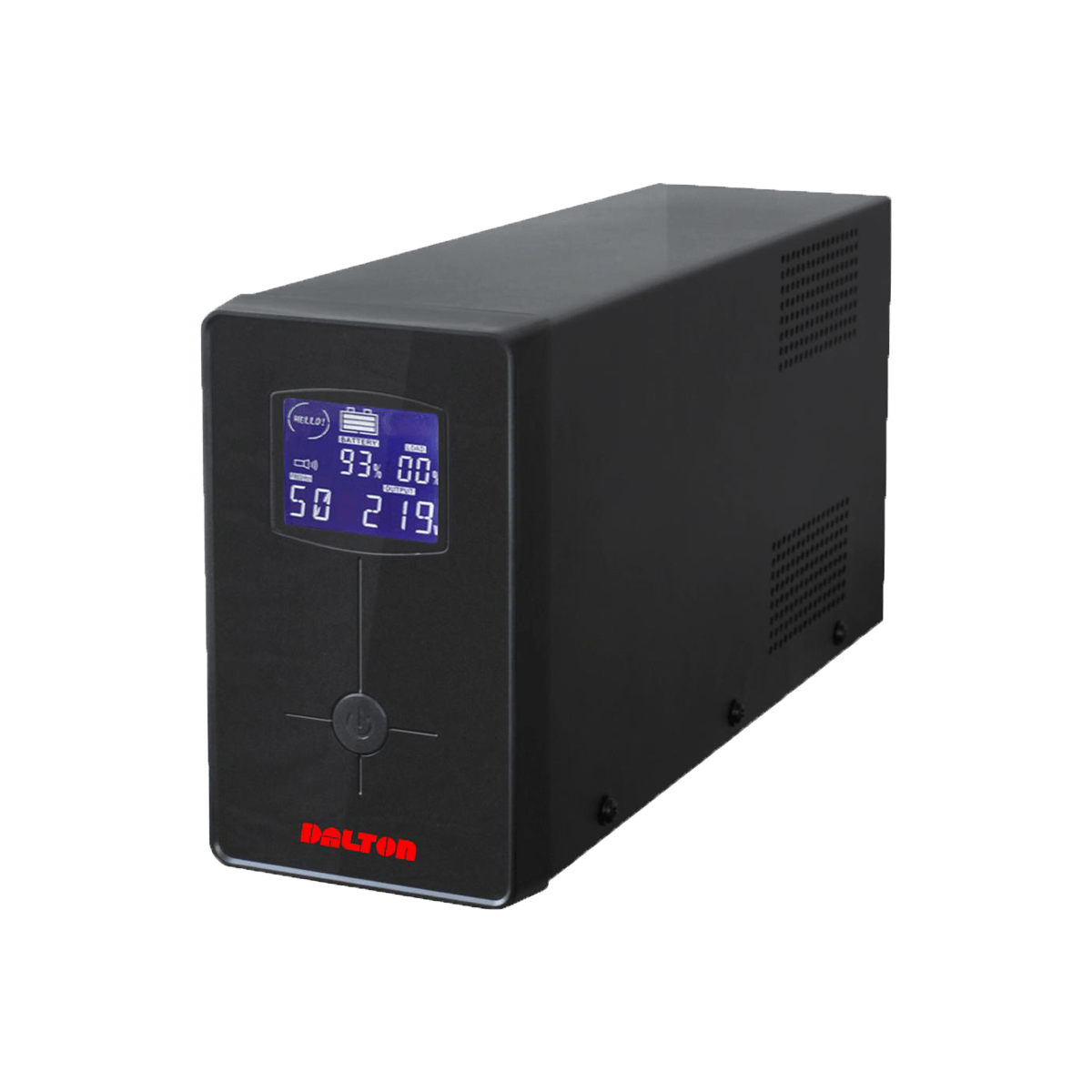

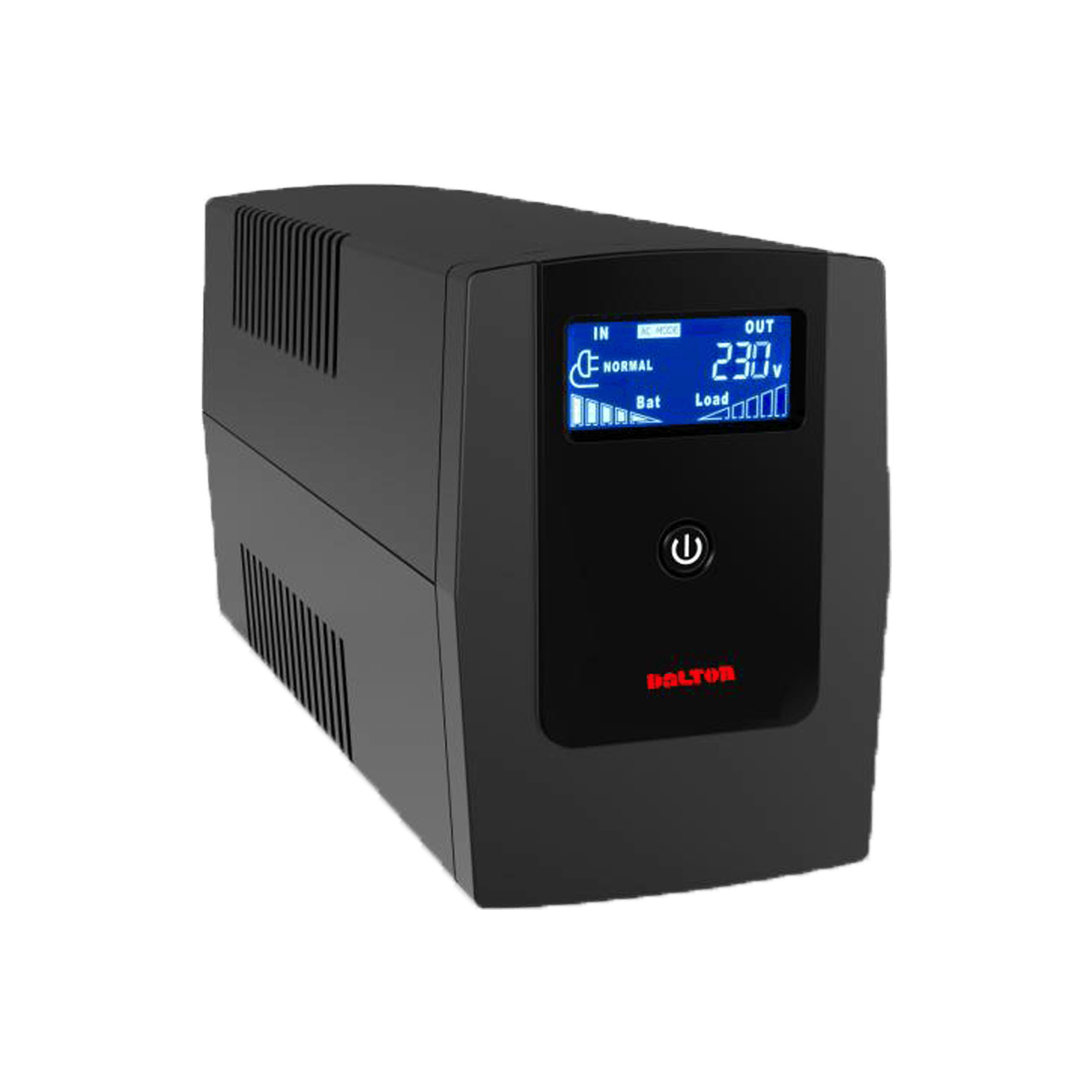

Dalton UPS Line Interactive SM10

المواصفات الفنية

Input

• Input System: Single Phase
• Voltage Range:
  • 176-276VAC (100% load)
  • 120-276VAC (50% load)
• Power Factor: $\ge$0.99
• Frequency: 50/60Hz

Output

• Output System: Single Phase
• Rated Voltage: 208*/220/230VAC
• Power Factor: 0.6
• Voltage Precision: $\pm$2%
• Voltage Distortion:
  • < 1% THDV on linear load
  • < 5% THDV on non-linear load
• Output Waveform: Simulated Sinewave
• Output Frequency: 50/60Hz ($\pm$10%)
• Inverter Overload Capacity (Utility power, 25℃):
  • 100-105%: no alarm
  • 105-125%: load transfers to Bypass mode after 10 minutes
  • 125-150%: load transfers to Bypass mode after 30s
• Transfer Time: 0ms
• Crest Factor: 3:1

Display & Communication

• LCD Display: LCD Display indicates frequency, voltage, load, battery voltage, etc.
• LED Status Indicator: Utility power; Battery discharge; Inverter On

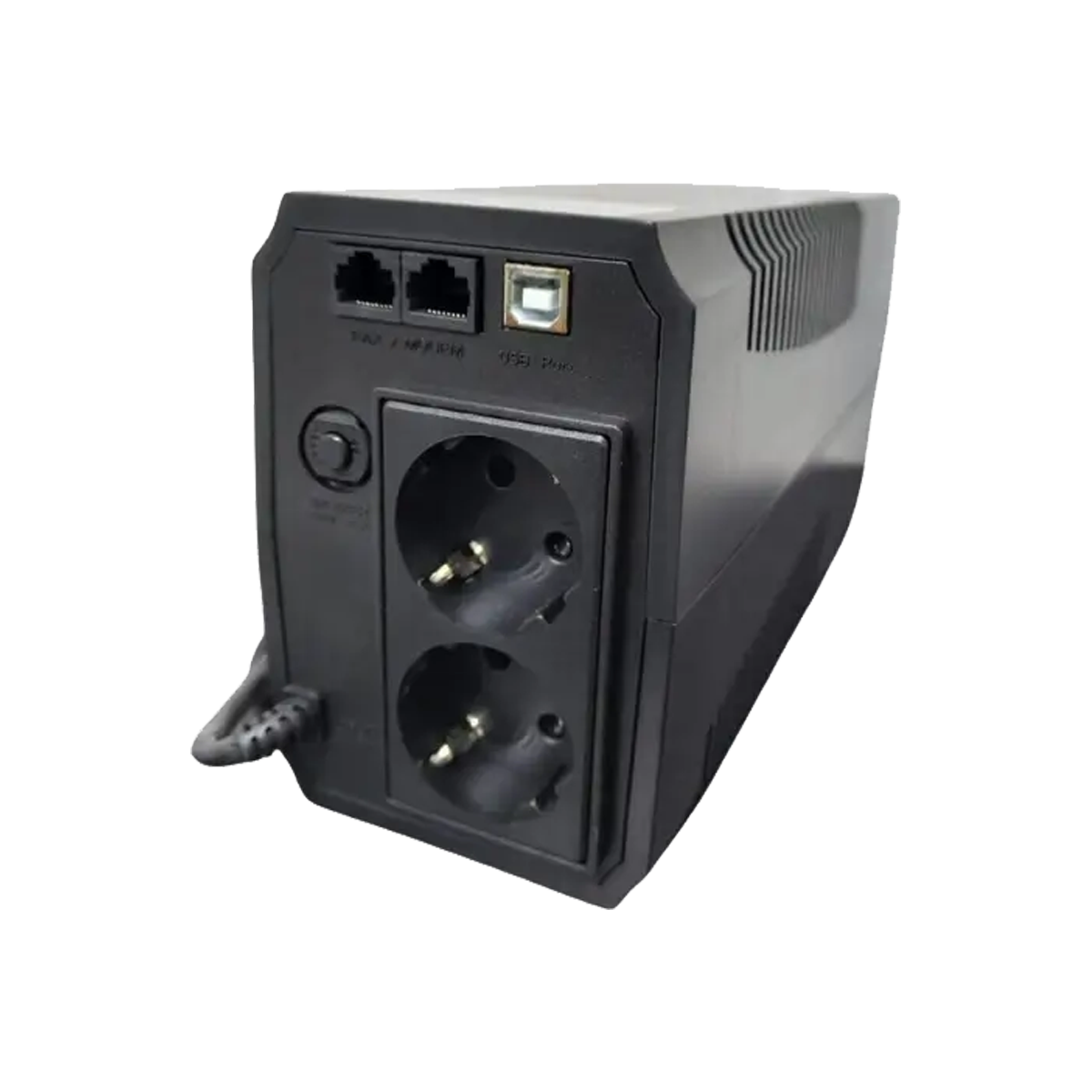

• External Communication: USB/RS485 and (RS232 and SNMP adapter are optional)
• PARALLEL: No
• Communication Software: Windows XP/ 2003 and later version; Linux; Unix
• Optional: EX SNMP / dry contact relays / Modbus

Battery

• Battery Type: Sealed maintenance-free lead-acid battery
• Backup Time (25℃): Full load $\ge$ 5min (Standard)
• Functions: Expandable Battery Modules

Environmental & Performance

• Temperature: 0 ~ 40℃
• Humidity: <95% (non-condensing)
• Altitude: <1000m
• Efficiency:
  • 90% (Line mode)
  • 92% (Battery mode)
  • 96% (Eco mode)
• Noise (dB): $<$35dB
• Protection: Low battery, overload, over temperature, short circuit, output over voltage, output low voltage
